Description
Disinfection Flow Rates
These flow rates are based on 95% UVT Water
– 16 mJ/cm2: 40 GPM – 30 mJ/cm2: 24 GPM – 40 mJ/cm2: 18 GPM

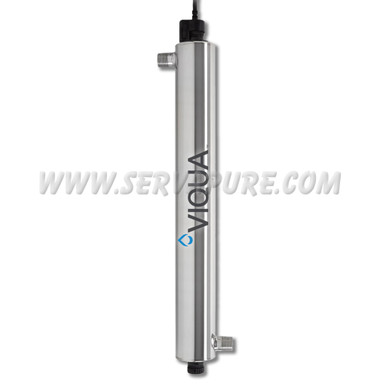

– High-efficiency, compact, UV disinfection system- Designed for commercial scale flow rates up to 30 GPM- Features “count down” timer display and lamp change reminder
Whether you are looking to fit a small school or a large hotel, Viqua has an UV disinfection solution to meet your needs. Viqua’s professional-grade equipment redefines reliability with rock solid performance under all environmental conditions.
Applications
– Schools, Daycares, eldercare, and healthcare facilities- Cottages and camps- Office and public buildings- Restaurants, hotels and resorts- Dairy and livestock
Disinfection Flow Rate – 16 mJ/cm2: 40 GPM (150 lpm) – 30 mJ/cm2: 24 GPM (91 lpm) – 40 mJ/cm2: 18 GPM (68 lpm) Operating Parameters – Max. Operating Pressure: 125 psi – Ambient Air Temp: 32°F – 104° F – Influent Water Temp: 36°F – 104°F – Installation Orientation: Vertical or Horizontal
Electrical – Voltage: 100-240 VAC – Frequency: 50-60 Hz – Max Current: 1.2 A – Power Consumption: 70W
Dimensions – Chamber: 30-2/3″ x 3-1/2″ – Controller: 9-1/3″ x 3-1/4″ x 2-1/2″ – Inlet/Outlet: 1″ MNPT – Shipping Weight: 19 lbs
Options – Dynamic Flow Restrictor: Can be included – Temperature Management Valve: Can be included – Solenoid Valve: No – COMMcenter Control Package: No
Features – Chamber Material: 304 SS – UV Sensor: No – Flow Meter: No – Cool Touch Fan: No – Visual “Power On”: Yes – Visual Lamp Life Remaining: Yes – Audible Lamp Failure: Yes – Audible Lamp Replacement Reminder: Yes – Sensor Reading Output (4-20 mA): No
Replacement Parts – Lamp/Quartz Sleeve Kit: QL-600 – UV Lamp Only: S600RL-HO – Quartz Sleeve Only: QSO-600 – UV Sensor: None – Controller: BA-ICE-C
