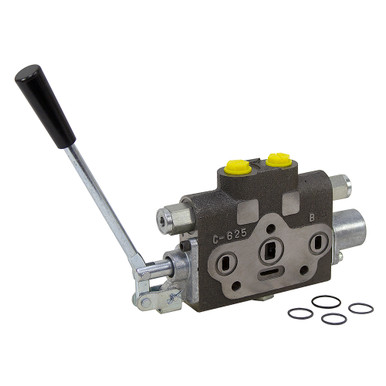

WORK SECTION SV SECTIONAL CONTROL VALVE
New PRINCE work section for SV sectional control valves. Top ports. Load check. Metering notches in spool to allow better control of load. Non-adjustable work port reliefs set at 2000 PSI. Includes between section o-ring seal kit.
SPECIFICATIONS
- Double Acting
- Model Number SVR1ES3BB
- Spool Type 4-Way 3-Position
- Spool Action Spring center
- Flow 12 GPM nominal
- Pressure 3000 PSI max.
- Ports SAE 8
- Size 8.875″ x 1.5″ x 4.875″
- Shpg. 9 lbs.
