Description

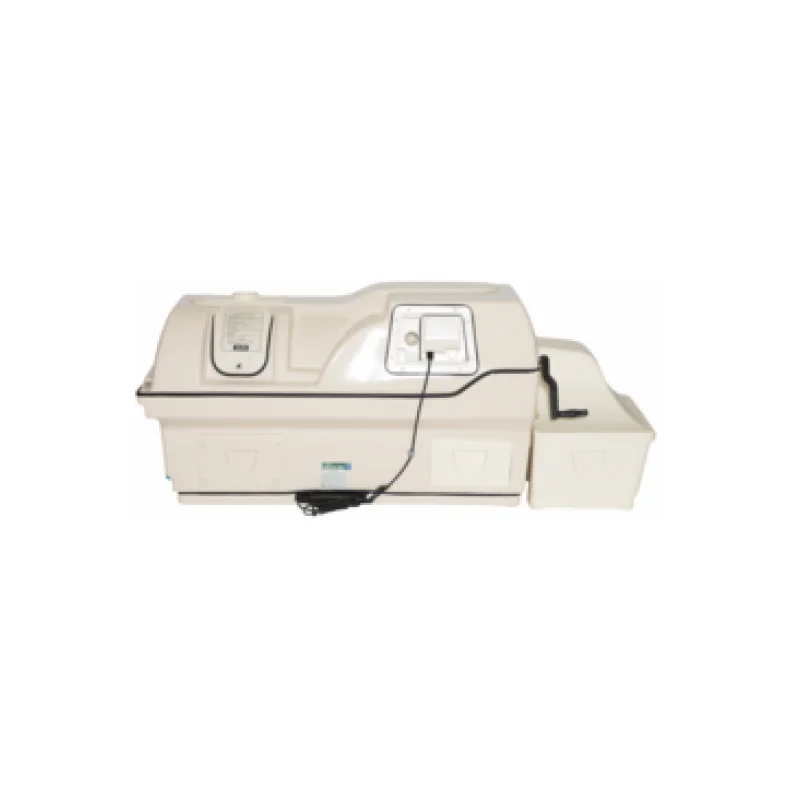

Sun-Mar Centrex 3000 Central Composting Toilet
The CENTREX 3000 is unique among the Sun-Mars Central units. It utilizes a continuous flow design for very heavy cottage or medium residential use. With a continuous flow system, rotation of the drum moves compost along the larger and longer CENTREX 3000 drum, before it drops automatically into the collection housing at the end of the unit. Under normal operating conditions, the drum will not have to be turned backwards for emptying.
All CENTREX 3000 electric units feature a built-in heating element and fan assembly. This unit is for use with a 1 Pint, Ultra Low Flush Toilet, purchased separately. More than one toilet may be installed on this system, depending on needs and available space.
Capacity
Listed capacities refer to the amount of people, on average, using the unit per day.
| Residential/Continuous | 6 adults or families of 8 |
| Seasonal/Vacation | 9 adults or families of 11 |
Electrical Specification
Electricity must be connected while the unit is in use for proper operation
| Maximum Amps (With Heater On) | 3.6 |
| Fan Watts | 35 |
| Heater Watts (When Thermostat switches it on) | 370 |
| Average Power Use in Watts (Heater on 1/2 time) | 200 |
Vent Pipe and Drains
All Sun-Mar products must be properly vented per the guidelines present in the units owners manual.
| Vent Pipe | 2 Thin-wall PVC |
| Drains |
1 OD Required in all applications. |
Weight and Dimensions
Measurements are given in pounds (lbs) and inches.
| Height: | 30 1/4 |
| Width: | 27 1/2 |
| Length: | 71 |
| Weight: | 110 lbs |
| Shipping Weight: | 144 lbs |
| Shipping carton dimension: | 34 by 30 by 62 |
