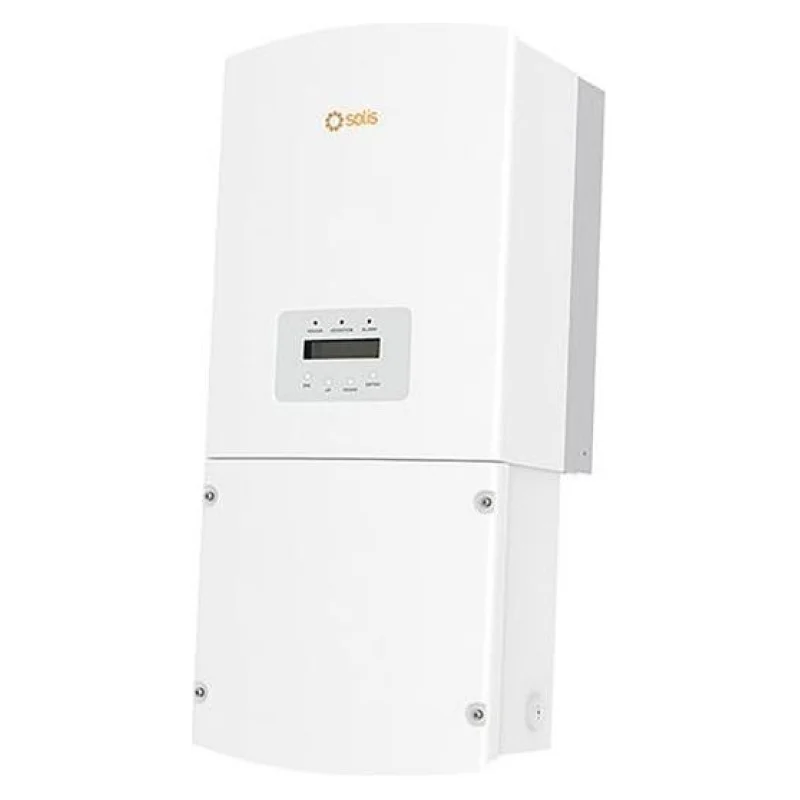

Solis Solar Inverter 7.6kw 4G Single phase Three MPPT. US Version. .with APS transmitter

Solis Solar Inverter 7.6kw 4G Single phase Three MPPT. US Version. .with APS transmitter

Original price was: $105.00.Current price is: $26.25.

SKU: CWXD55256624077 Category:

Description

Solis Solar Inverter 7.6kw 4G Single phase Three MPPT. US Version with APS transmitter

Solis 6-10KW US plus version single phase string inverters have up to 4 MPPTs which are perfect for residential rooftop systems with different roof orientations. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.

3.8-11.4kW Energy Storage Inverter Leading Features

  • String current up to 14A
  • Support module level monitoring
  • Industry-leading 3 and 4 MPPT designs
  • Max. efficiency 97.8% (CEC efficiency 97.5%)
  • CA Rule 21 compliant and UL 1741 SB Certified
  • Sunspec protocol with option cellular and WiFi
  • Integrated module level rapid shutdown transmitter
  • AFCI protection, proactively reduces fire risk
  • 10 years standard warranty with extension options
  • Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance

Input DC

  • Max. input voltage:600 V
  • Rated voltage:330 V
  • Start-up voltage:120 V
  • MPPT voltage range:100-500 V
  • Max. input current:14A
  • Max. short circuit current:22A
  • MPPT number/Max. input strings number:3/3

Output AC

  • Rated output power:7.6 kW
  • Max. apparent output power:7.6 kVA
  • Max. output power:7.6 kW
  • Rated grid voltage:1/PE, 240 V / 208 V
  • Rated grid frequency:60 Hz
  • Max. output current for 240 V grid:31.7A
  • Max. output current for 208 V grid:36.5 A
  • Power factor:>0.99 (0.8 leading – 0.8 lagging)
  • THDi:<3%

Efficiency

  • Max. efficiency:97.8%
  • CEC efficiency:97.5%

Protection

  • DC reverse-polarity protection:Yes
  • Ground fault monitoring:Yes
  • Anti-islanding protection:Yes
  • Integrated AFCI (DC arc-fault circuit protection):Yes
  • Integrated DC switch:Yes
  • Rapid shutdown:Built-In APS or Tigo Transmitter
  • Surge Protection:DC Type III / AC Type III
  • Compliant MLRSD Products:TS4-A-F/2F, APSmart RSD-S / RSD-D

General Data

  • Dimensions (W*H*D):13.1*28.8*9.8 in (333*732*249 mm)
  • Weight:45.2 lbs (20.5 kgs)
  • Topology:Transformerless
  • Self-consumption (night):<1 W
  • Relative humidity:0-100%
  • Operating ambient temperature range:-13F to 140F (-25C to 60C)
  • Storage environment:-13F to 176F (-25C to 80C)
  • Ingress protection:TYPE 4X
  • Cooling concept:Natural convection
  • Max. operation altitude:13,120 ft (4000 m)
  • Compliance:UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1

Features

  • DC connection:2 knockout for 1″conduit at bottom, 4 knockout for 3/4″conduit at side and back, Screw clamp terminal
  • AC connection:2 knockout for 1″conduit at bottom, 4 knockout for 3/4″conduit at side and back, OT terminal
  • Display:LCD
  • Communication:RS485, Optional: Cellular, Wi-Fi
