Description
SOFT START UP VALVE

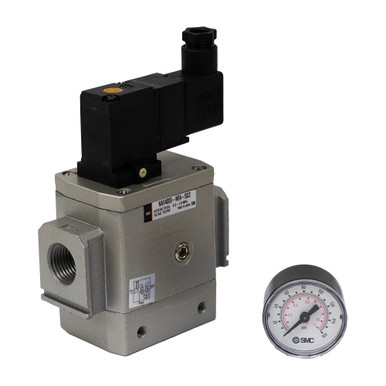

New, SMC NAV4000-N04-5DZ soft start up valve with indicator light and surge voltage suppressor. Allows pressure to build slowly on machine restart to help prevent damage or injury. 0-160 PSI gauge included.
SPECIFICATIONS
- Brand SMC
- Model Number NAV4000-N04-5DZ
- Series NAV
- Port Size 1/2″ NPT
- Number of Ports 3
- Proof Pressure 217 PSI (1.5 MPa)
- Operating Pressure Range 29 to 145 PSI (0.2 to 1 MPa)
- Pressure Gauge Port Size 1/8″ NPT
- Pressure Gauge Range 0-160 PSI (0-1.1 MPa)
- Media Type Air
- Ambient and Fluid Temperature 32° to 140° F (0 to 60° C) (Use dry air when temperature is low)
- Rated Coil Voltage 24 Volt DC
- Electrical Entry Type D DIN Terminal
- Size 5-3/4″ x 4-1/8″ x 2″
- Shpg 3 lbs.
