Description

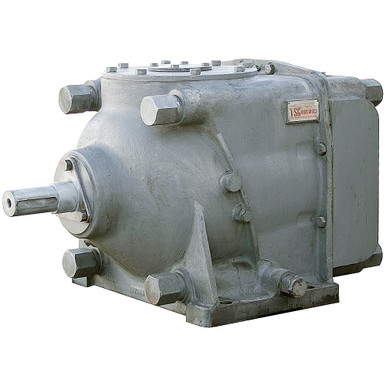

VSG HYDRAULICS PISTON PUMP
Unused, old inventory. VSG HYDRAULICS piston pump. Model MK111, size 24, type K. Base mount on 23″ x 10-1/2″ centers with 1.335″ diameter mounting holes.
SPECIFICATIONS
- Brand VSG Hydraulics
- Model Number Mark 111
- Small Ports
Side Ports SAE 20
Top Ports SAE 20 (Common with Flanges) - Large Rear Ports
6-bolt flange on 3-7/8″ bolt circle for 1″-8 NC bolts 1-1/2″ deep
3-3/4″ dia. port hole - Mount 4 bolt base mount
- Shaft 2-5/8″ dia. x 4-3/4″ long with two 3/4″ x 4-1/2″ long keyways
- Size 40″ x 23″ x 24.25″
- Shpg. 2200 lbs.
