Description

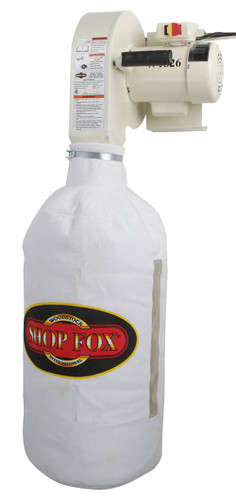

Wall mounted dust collector is designed to capture dust right at the source, eliminating the reduced efficiency of a duct system. With 537 CFM capacity, it will handle just about any woodworking machine, and with no complicated duct system, static pressure loss is minimal. A simple wall mounted bracket and locking screw system also ensures you’ll be safely up and running in no time! The bag filters features a window to gauge how much dust is in the bag and a bottom zipper for easy dust disposal.
- For wood dust only
- Powder-coated finish
- Safety paddle switch
- CSA certified meeting CSA C22.2 243-M91 standards
Motor: 1 HP, 120V/240V, single-phase
Motor amp draw: 7A/3.5A
Speed: 3,450 RPM
Air suction capacity: 537 CFM
Static pressure: 7.2″
Number of 4″ intake holes: 1
Impeller: 10″ balanced steel, radial fin
Bag capacity: 2 cubic feet
Bag size: 13-1/2″ dia. x 24″D
Standard bag filtration: 2.5 micron
Cord: 6-5/8″L, 16 ga.
Size: 19-1/2″W x 18″D x 44″H
Weight 51 lbs.
Includes steel wall bracket and NEMA 5-15 plug for 120V .
