Description

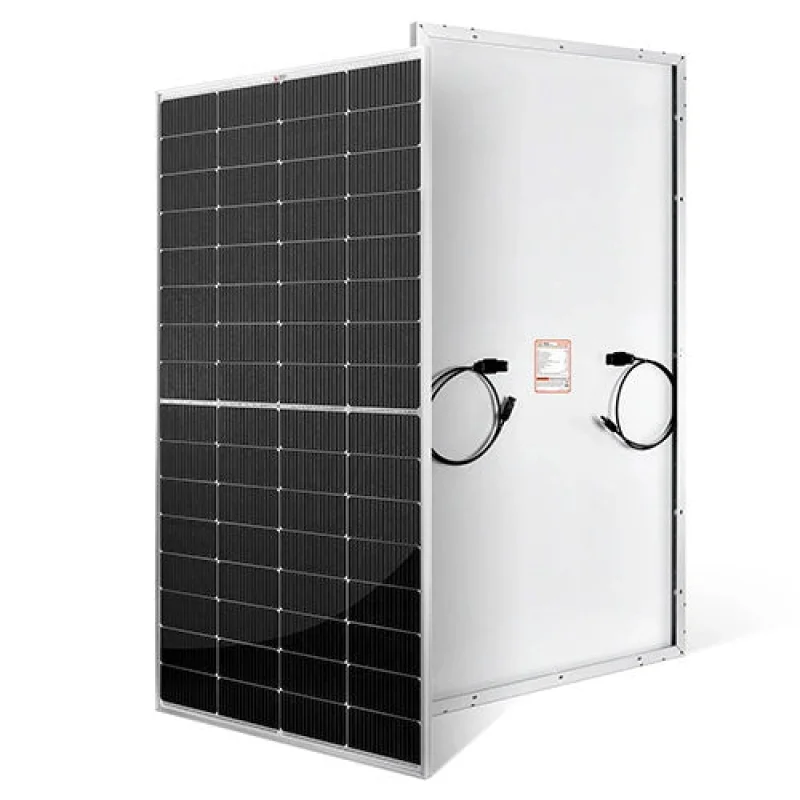

Rich Solar Mega 250 Solar Panel
The Rich Solar MEGA 250 is a high-performance 250-watt monocrystalline solar panel designed for off-grid applications such as RVs, vans, boats, and cabins. Its 16-busbar solar cell configuration enhances efficiency, while the lightweight anodized aluminum frame and anti-reflective tempered glass ensure durability and optimal energy transmission. The panel excels in low-light conditions, providing reliable power during cloudy days, mornings, and evenings.
Installation is straightforward, with pre-drilled holes compatible with various mounting options, including ground mounts, Z brackets, pole mounts, and tilt mounts. The MEGA 250 is built to withstand challenging environmental conditions and comes with a 25-year output warranty, ensuring long-term performance and reliability.
Built-in Components: 250 watt 12 volt solar panel, Panel leads (pair): 3 feet each, IP68 rated waterproof junction box, IP67 rated waterproof solar connectors, Bypass diodes built into the junction box
Rich Solar Mega 250 Specs
- Maximum Power(Pmax): 250W
- Maximum Power Voltage(Vmp): 18.9V
- Maximum Power Current(Imp): 13.2A
- Open Circuit Voltage(Voc): 22.8V
- Short Circuit Current(Isc): 13.7A
- Maximum System Voltage(Vmax): 1500 VDC
- Temperature Range: -40 ~ +185
- Weight: 26.9 lbs
- Dimensions: 60.6 x 29.9 x 1.2 in
- Material: Tempered Glass, Aluminum, Monocrystalline Silicon
- On Panel Cable Length: ~35 in
Rich Solar Mega 250 Features
- 16-busbar solar cell configuration
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Compatible with on-grid and off-grid inverters
- Plug and play junction box
- Industry standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings and evenings
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
