Description

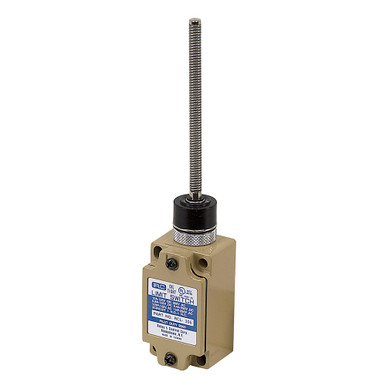

PRECISION OIL TIGHT WOBBLE HEAL COIL SPRING LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Gasket on housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 30 operations per minute.
SPECIFICATIONS
- Model RCL-306
- Contact Type 1 Normally Open, 1 Normally Closed
- Contact Ratings:
10 Amps @ 125 VAC
1/2 HP @ 125 VAC, 1 HP @ 250 VAC
300VAC max. - Actuator details4.1″ coil spring
- Operating Force Max. 5 in.oz.
- Pre-Travel Max.30°
- TerminalsScrew
- Size1-5/8″ x 1-1/2″ x 4″ (housing only)
- Mount 4 holes 1-1/8″ x 2-3/8″
- Shpg.1 lbs.
