Description

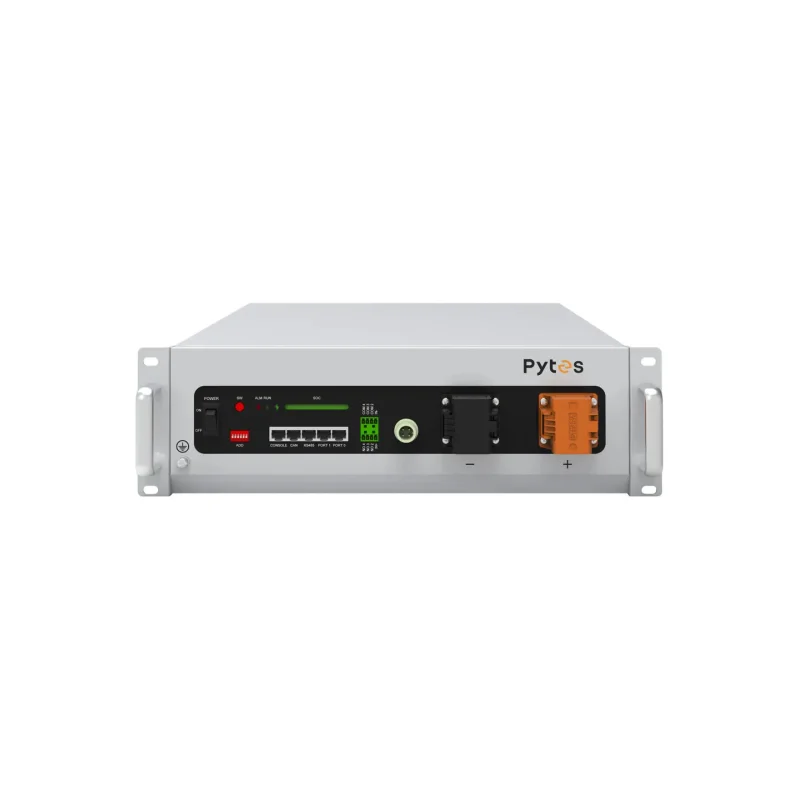

Pytes V5 LFP Battery: High-Performance Energy Storage for Your Home
ThePytes V5 LFP Batteryis a cutting-edge lithium iron phosphate (LFP) battery designed to provide reliable and efficient energy storage for homes, small businesses, and more. With anominal voltage of 51.2Vand acapacity of 100Ah, it delivers5.12kWh of energyto support your solar energy system, reducing reliance on the grid.
Features You Can Count On
- Self-Heating for Cold Environments: The integrated heating system ensures reliable charging even in freezing temperatures, activating below 32F.
- Easy Installation & Scalable: Stack up to16 unitswithout an additional hub, allowing for easy expansion as energy needs grow.
- Efficient Communication: Seamless integration with most solar inverters for optimal energy use and storage.
Specifications
- Voltage: 51.2V
- Capacity: 100Ah
- Energy: 5.12kWh
- Chemistry: LiFePO4
- Charge/Discharge Rate: 100A
- Dimensions: 17.32″ x 20.87″ x 5.51″
- Weight: 97 lbs
Included Accessories
- Flexible Busbars (300A)
- Cascade Communication Cable (CAN/RS485)
- 10AWG Grounding Cable
Power a better life withPytes V5 LFP Battery.
SKU:1650001
Nominal Voltage::51.2V
Nominal Capacity::100Ah
Kilowatt-hour(s)::5.12kWh
Dimensions::17.40×20.87×5.51Design Life::6000 Cycles
Communications::CAN / RS485Manual:Download
Spec Sheet:Download
Certificates (ZIP):Download
