Description
Summary

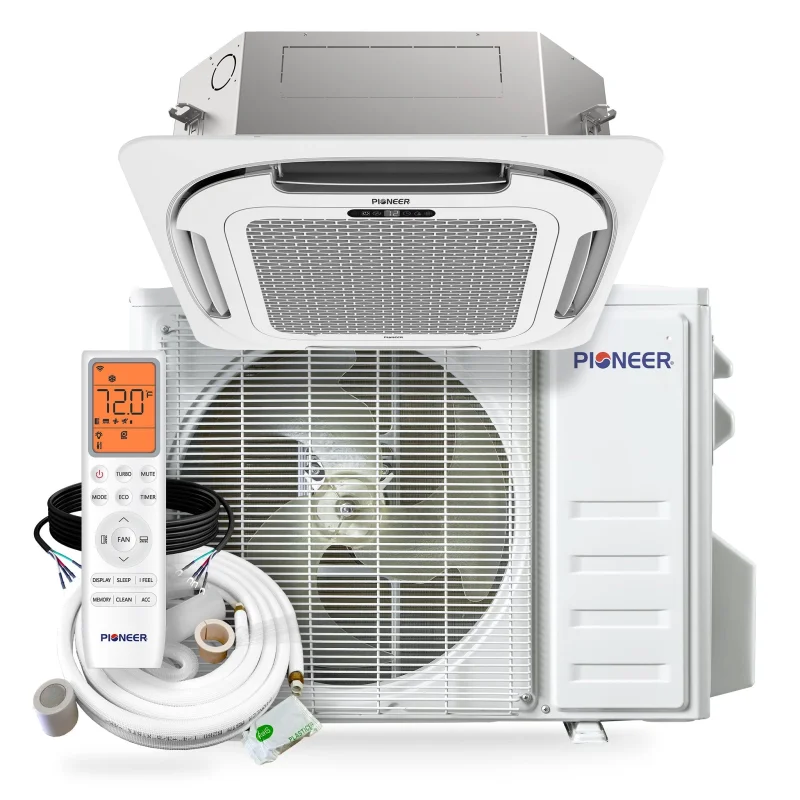

- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 23,000 BTU/H with 22.5SEER2 / 11.7 EER2efficiency
- Heating capacity: 25,000 BTU/H with 10.4 HSPF2 / 3.6 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454bRefrigerant
- Ultra Low Ambient Range Operation (As low as -13F in Heating / As high as 131F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
- AHRI Certificate
- Energy Guide
- System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 23,000 BTU/h
- Cooling Capacity Range: 7,550~25,200 BTU/h
- Cooling SEER2: 22.5 BTU/W.h
- Cooling EER2: 11.7BTU/W.h
- Heating Rated Capacity: 25,000 BTU/h
- Heating Capacity Range: 8,700~28,300 BTU/h
- Heating HSPF2 (Region IV): 10.4 / 8.4 BTU/W.h
- Heating C.O.P.2 (47F/5F): 3.6 / 2.0 W/W
- Refrigerant Type: R454b
- Suitable Area: 750~1,000 Sq.F
- AHRI Reference: 217048761
- Indoor Unit
- Part Number: CT024GLSILSFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
- Product Dimensions (WDH): 33″-1/8 x 33″-3/4 x 10″-3/4 Inches
- Carton Dimensions (WDH): 36″-7/8 x 36″-7/8 x 11″-1/2 Inches
- Net / Gross Weight: 51.8 / 59.5 lbs
- Decorative Panel
- Part Number:CT2460DPNL
- Product Dimensions (WDH): 37-3/8″ x 37-3/8″ x 2-7/8″
- Carton Dimensions (WDH): 41-1/2″ x 41-1/2″ x 3″-1/2
- Net / Gross Weight: 13.2 / 19.8 lbs
- Outdoor Unit
- Part Number: YN024GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 54 dB(A)
- Net Dimensions (WDH): 38″-1/2 x 16″-5/8 x 31″-5/8 Inches
- Carton Dimensions (WDH): 40″-1/4 x 18″-7/8 x 31″-7/8 Inches
- Net / Gross Weight: 104.7 / 119.0 lbs.
Dimension Chart
33 33 10 37 37 2 38 16 31 2 8
