Description
Summary

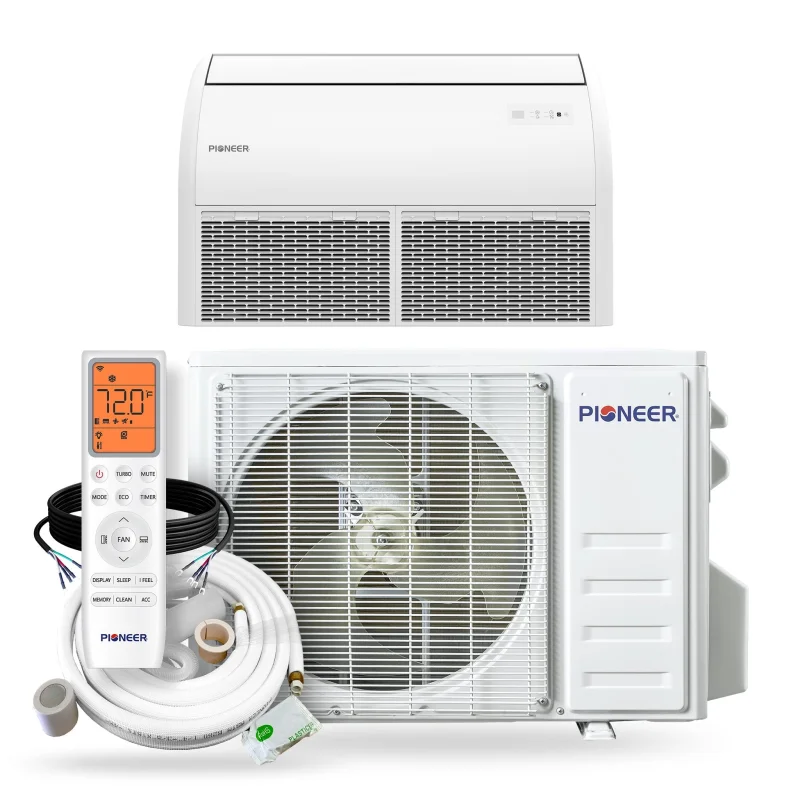

- High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 20.5SEER2 / 11.7 EER2efficiency
- Heating capacity: 19,000 BTU/H with 9.0 HSPF2 / 3.10 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454bRefrigerant
- Ultra Low Ambient Range Operation (As low as -13F in Heating / As high as 131F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
- AHRI Certificate
- Energy Guide
- System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 4,550~20,200 BTU/h
- Cooling SEER2: 20.5 BTU/W.h
- Cooling EER2: 11.7BTU/W.h
- Heating Rated Capacity: 19,000 BTU/h
- Heating Capacity Range: 2,910~22,840 BTU/h
- Heating HSPF2 (Region IV): 9.0 / 8.2 BTU/W.h
- Heating C.O.P.2 (47F/5F): 3.1 / 1.9 W/W
- Refrigerant Type: R454b
- Suitable Area: 500~750 Sq.F
- AHRI Reference: 217048766
- Indoor Unit
- Part Number: UT018GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 588/512/453/353/265 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50/46/44/40/36 dB(A)
- Product Dimensions (WDH): 41″-1/2 x 26″-1/2 x 9″-1/4 Inches
- Carton Dimensions (WDH): 44″-1/2 x 26″-1/2 x 12″ Inches
- Net / Gross Weight: 52.9 / 63.9 lbs.
- Outdoor Unit
- Part Number: YN018GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 36″-1/2 x 15″ x 27″-1/2 Inches
- Carton Dimensions (WDH): 37″-3/8 x 16″-1/2 x 28″-7/8 Inches
- Net / Gross Weight: 90.4 / 97.0 lbs.
Dimension Chart
41 26 9 36 15 27 2 8
