Description

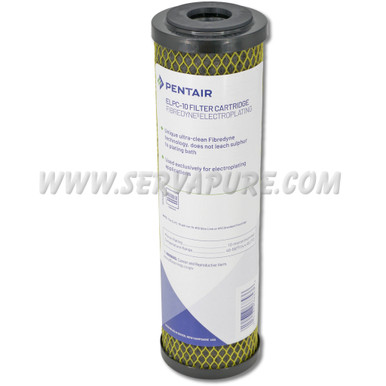

– The ELPC series is a premium line of activated carbon filter specifically designed for electroplating solutions
– ELPC series products have a seven micron nominal rating with superior dirt holding ability due to the fibrous physical structure and manufacturing process that results in a product with true depth filtration
– This depth filtration will allow for maximum treatment with minimum pressure drop through the cartridge
– Cellulose-free construction
– Resistant to chemical breakdown in both acidic and alkaline solution up to 180°F (82°C)
– Will not contribute to plating porosity or brittleness
– Integrated post filtration layer to ensure that no carbon fines are bled into the plating bath
– End cap gaskets are permanently molded onto the end caps to ease inchange-out of filter cartridges (gaskets cannot fall off into the filter housing during installation or removal of filters)
***ELPC-10 WILL NOT FIT 10 SLIM LINE OR 10 STANDARD HOUSINGS
– Dimensions: 2-7/8″ x 9-3/4″ (73 mm x 248 mm)
– Micron Rating (Nominal): 7 microns
– Temperature Rating: 40-180°F (4.4-82.2°C)
– Initial ∆P (psi) @ Flow Rate (gpm): 3.4 psi @ 1.0 gpm (0.2 bar @ 3.8 Lpm)
– Filter Media: Advanced Bonded PAC
– End Caps: Polypropylene
– Netting: Polyethylene
– Gasket: Santoprene
– Standard 30 Filters/Case
