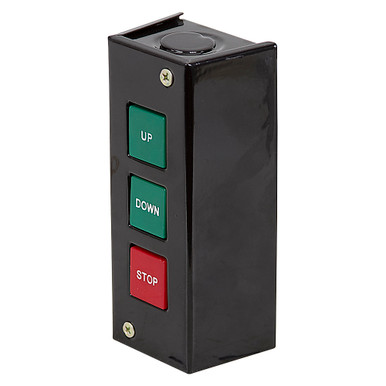

PBS-602 Up Down Stop 3-Button Control Station – Relay & Control Corp

Description

3 BUTTON CONTROL STATION
Brand new, RELAY & CONTROL model PBS-602. Steel housing with 3 momentary push buttons. NEMA 1 enclosure. Knockouts for 1″ conduit on top/bottom.

SPECIFICATIONS

• Contact Rating 5 amps @ 240 VAC max.
• Top Button Green UP Normally Open Contact
• Middle Button Green DOWN Normally Open Contact
• Lower Button Red STOP Normally Closed Contact
• Size2-3/8″ x 1-13/16″ x 5-5/16″
• Shpg. 1 lbs.
