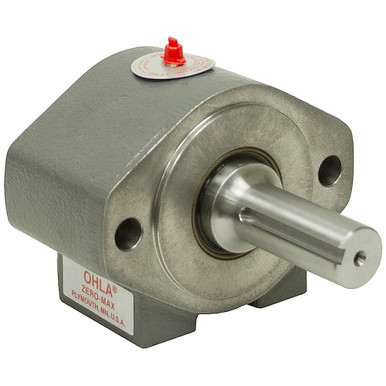

Overhung Load Adapter for 3/4″ Keyed Shaft Input SAE A 2 bolt mount Zero-Max Model 210-12

Description

3/4″ KEYED INPUT/1″ KEYED OUTPUT OVERHUNG LOAD ADAPTER
Brand new, ZEROMAX model 210-12 overhung load adapter. Cast iron construction with ball bearings. Prevents wear on motor/pump components due to external overhung loads (radial and axial), provides solid mounting. Isolates from contamination in harsh environments. Allows removal of motor/pump while leaving load attached to shaft. Grease zerk for bearings.

SPECIFICATIONS

• Brand Zero-Max
• Model 210-12
• Input Shaft 3/4″ dia. female socket w/ 3/16″ keyway
• Input Mount SAE A 2 bolt
• Output Shaft 1″ dia. x 2-3/4″ w/1/4″ keyway
• Base Mount Four 3/8″-16 tapped holes, 2-5/16″ x 1-3/4″
• Maximum Speed 4400 RPM
• Size 5.5″ x 2.75″ x 4.125″
• Shpg. 11 lbs.
