Description

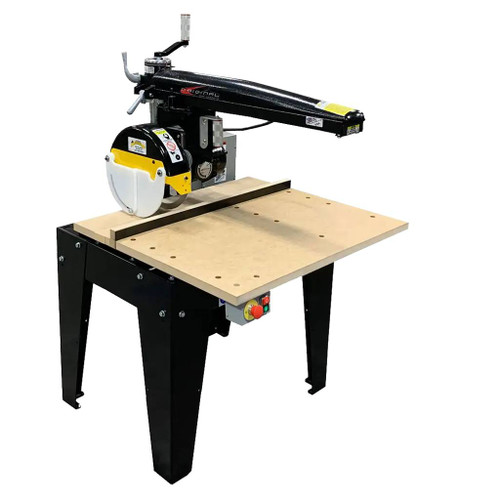

An extension of industrial line cutting machines, built to exacting tolerances and manufactured with adjustments at all wear points giving it extremely tight cutting tolerances throughout its service life.
- Cast iron and cast aluminum construction
- Mounted on heavy gauge steel frame and legs
- Automatic electronic brake
- TEFC motor
230V, 3 HP, 3 phase, 3,425 RPM.
Blade dia. 12″, arbor 1″.
Cutting capacity: 1-7/16″ @ 45° bevel, 2-1/4″ @ 90°, 1″ crosscut on 24″ stock.
Rip capacity: 27-1/4″.
Miter 16″ @ 45° 1″ stock.
Positive stops: 45°, 90°.
Table 39″W x 25″L.
Tool size 36-1/8″L x 40″W x 62-1/2″H.
Weight 320 lbs.
Includes
automatic electronic brake
no restart after power loss protection
complete upper and lower blade guard with anti-kickback attachment
dust elbow
auto-return device
arbor nut
collars
wrenches
heavy steel base with legs
oversized Masonite® tabletop
adjustable crosscut stop
Blade not included, sold separately.
