Description

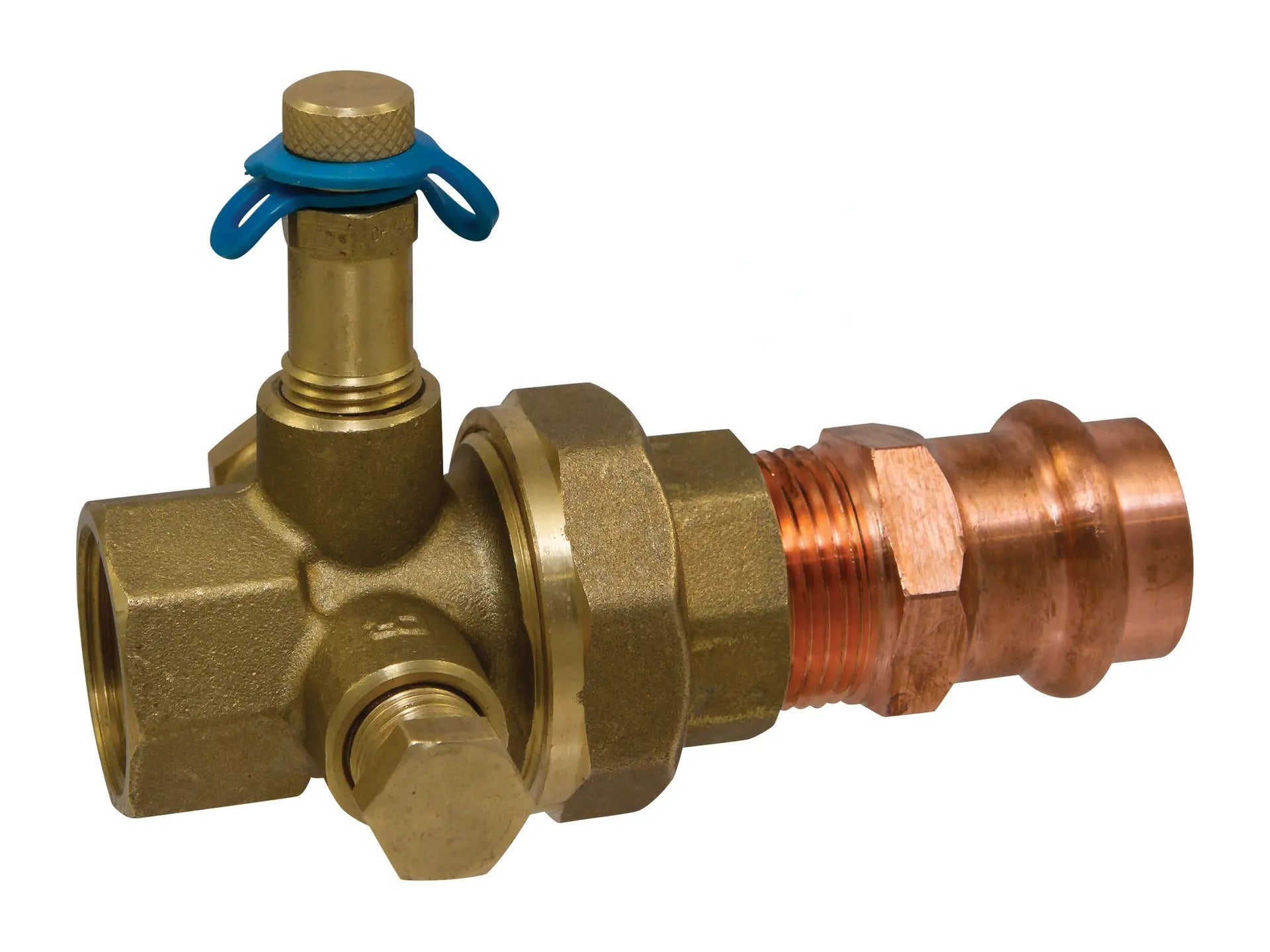

This NIBCO FLO-BOSS Coil-Connect Brass Union is specifically designed for use in HVAC systems. The Union acts as a service connection to allow for the installation and removal of equipment and components from the system. Each union is equipped with 1 PT port, 2 additional tapped ports are available for the addition of optional accessory items. This NIBCO FLO-BOSS Union is constructed of dezincincification resistant brass and is specifically designed for use in HVAC systems. The Union acts as a service connection to allow for the installation and removal of equipment and/or components from the system. Union options allow for flexibility with a variety of combinations of Solder, FPT, MPT and Press end connections. Union tailpiece options give further flexibility by adding up to 2 reductions in connection size. Each union comes standard with a PT port and has 2 additional tapped and plugged ports for the addition of optional accessories. NIBCO FLO-BOSS Coil-Connect components are backed by the NIBCO 5-year 125% limited warranty.
Features
- 200 psi non-shock cold working pressure to 250°F
- Maximum temperature rating 250°F at 200 psi
- DZR Brass body and end connector
- EPDM O-ring
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- FLO-BOSS™ U
