Description

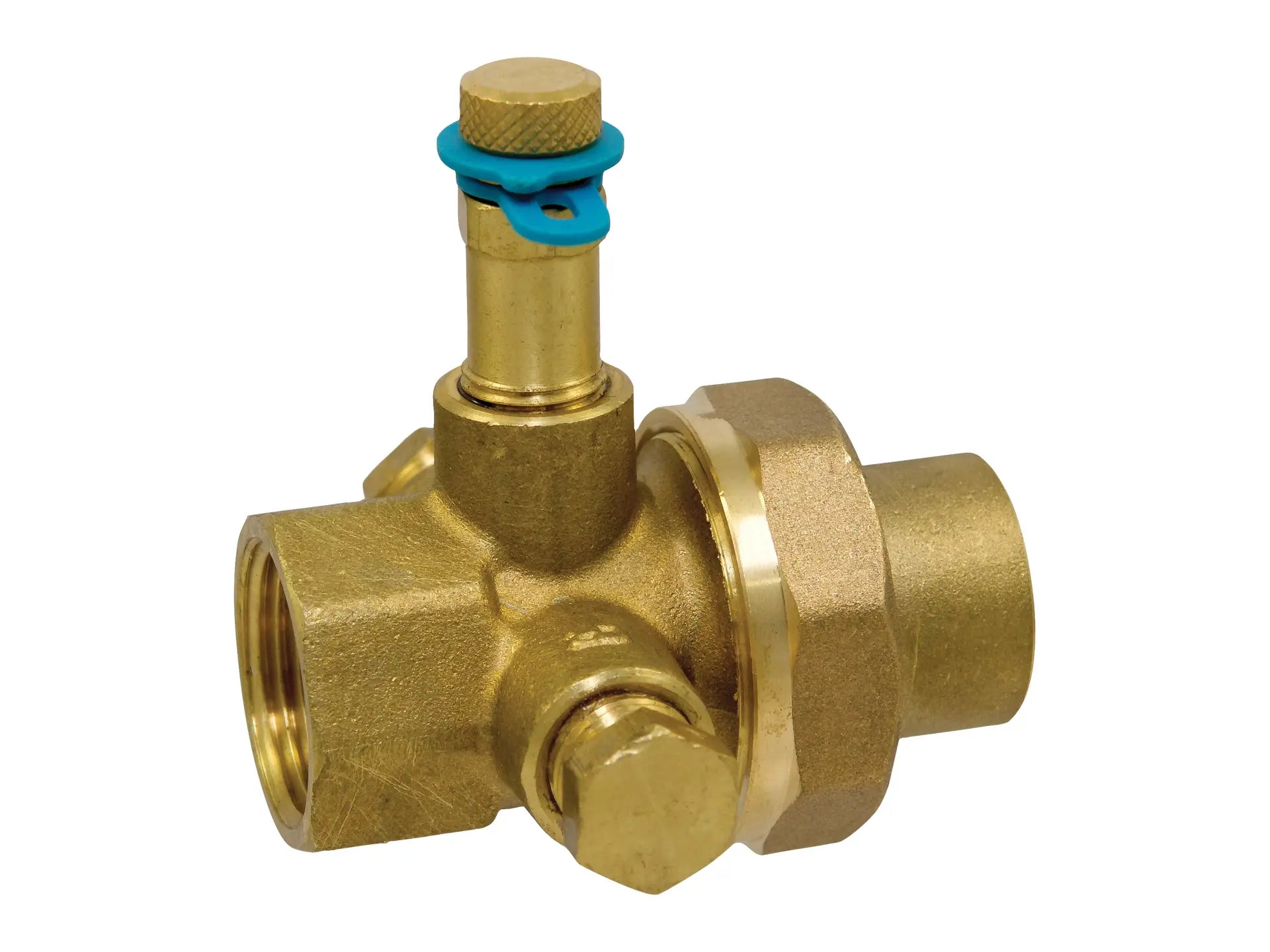

This NIBCO FLO-BOSS Coil-Connect Brass Union is specifically designed for use in HVAC systems. The union acts as a service connection to allow the installation and removal of equipment and components from the system. This NIBCO FLO-BOSS Union is constructed of dezincification-resistant brass. Union options allow flexibility with various combinations of Solder, FPT, MPT, and Press end connections. Union tailpiece options give further flexibility by adding up to two reductions in connection size. Each union comes standard with a PT port and has two additional tapped and plugged ports to add optional accessories. NIBCO FLO-BOSS Coil-Connect components are backed by the NIBCO 5-year 125% limited warranty.
Features
- 600 psi non-shock cold working pressure at 100°F
- Maximum temperature rating 250°F at 200 psi
- DZR brass body and end connector
- EPDM O-ring
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- FLO-BOSS™
- Solder ends per ASME B16.22
