Description

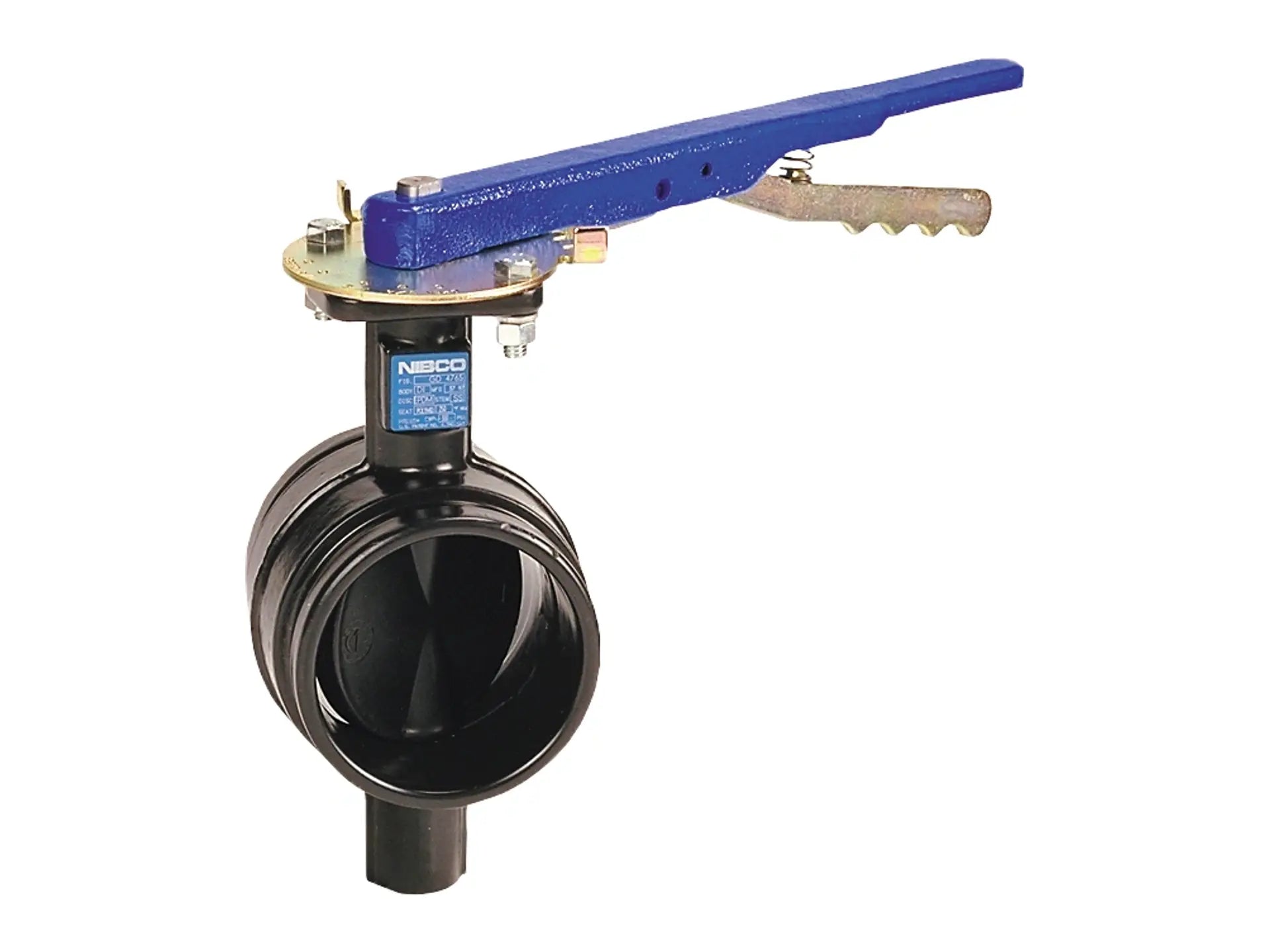

This NIBCO grooved end NSF third-party certified butterfly valve provides bubble-tight shutoff at 300psi. Grooved ends are compatible with IPS pipe. These valves are ideal for grooved steel pipe systems for commercial and light industrial process applications, including HVAC and hot and cold potable water. This NIBCO ductile iron butterfly valve provides easy operation with quarter-turn (90 degrees) open to close. The valve features an EPDM encapsulated ductile iron disc. The internal stem/disc splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides, and catalogs for engineering and installation information. Choose NIBCO ductile iron butterfly valves for the most specified, versatile, and economical option for commercial, mechanical, and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- Valve pressure rating 300 psi wwp
- EPDM encapsulated ductile iron disc
- Stainless steel stem with metal bushings
- Splined drive
- Extended neck for up to 2” of insulation
- Operating mechanism: bare stem, lever lock, and manual gear operator
- Not recommended for steam service
- Third-party certified to NSF/ANSI/CAN 61-2020 and NSF/ANSI/CAN 372-2020
- Designed to meet MSS SP-67
- MSS SP-25 (markings)
