Description

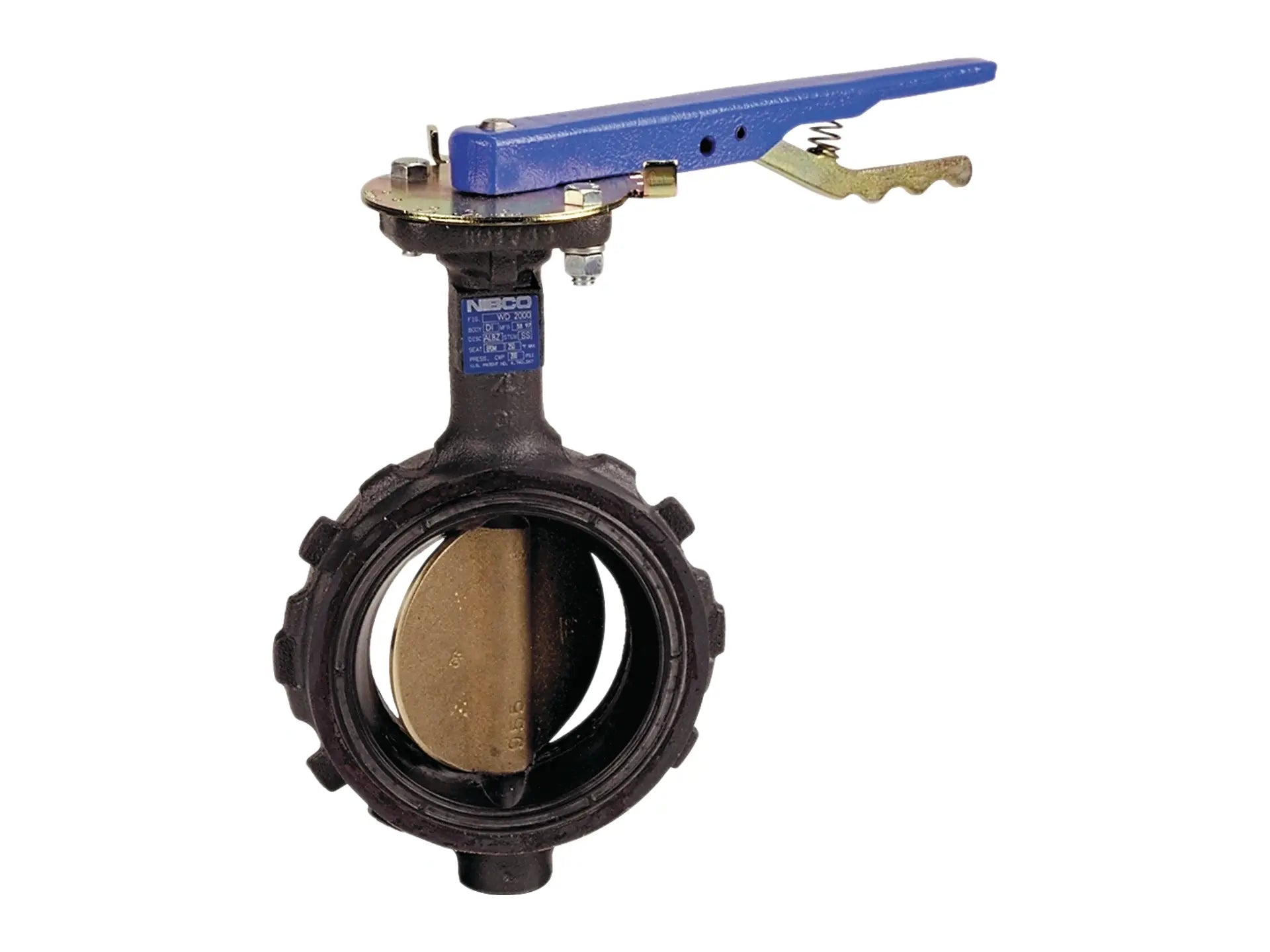

This NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The valve’s unique molded-in flour elastomer seat liner with CF8M stainless steel disc is recommended for most applications. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- Valve pressure rating 200 psi
- 225°F continuous and 250°F intermittent service
- Wafer style
- FKM molded-in seat liner
- CF8M stainless steel disc
- Stainless steel stem with copper bushings
- Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator
- Lead-free
- Not recommended for steam service
- Designed to meet MSS SP-67
- MSS SP-25 (markings)
- U.S. Coast Guard Category A
- California Health and Safety Code Section 116875
- Vermont Act 193
