Description

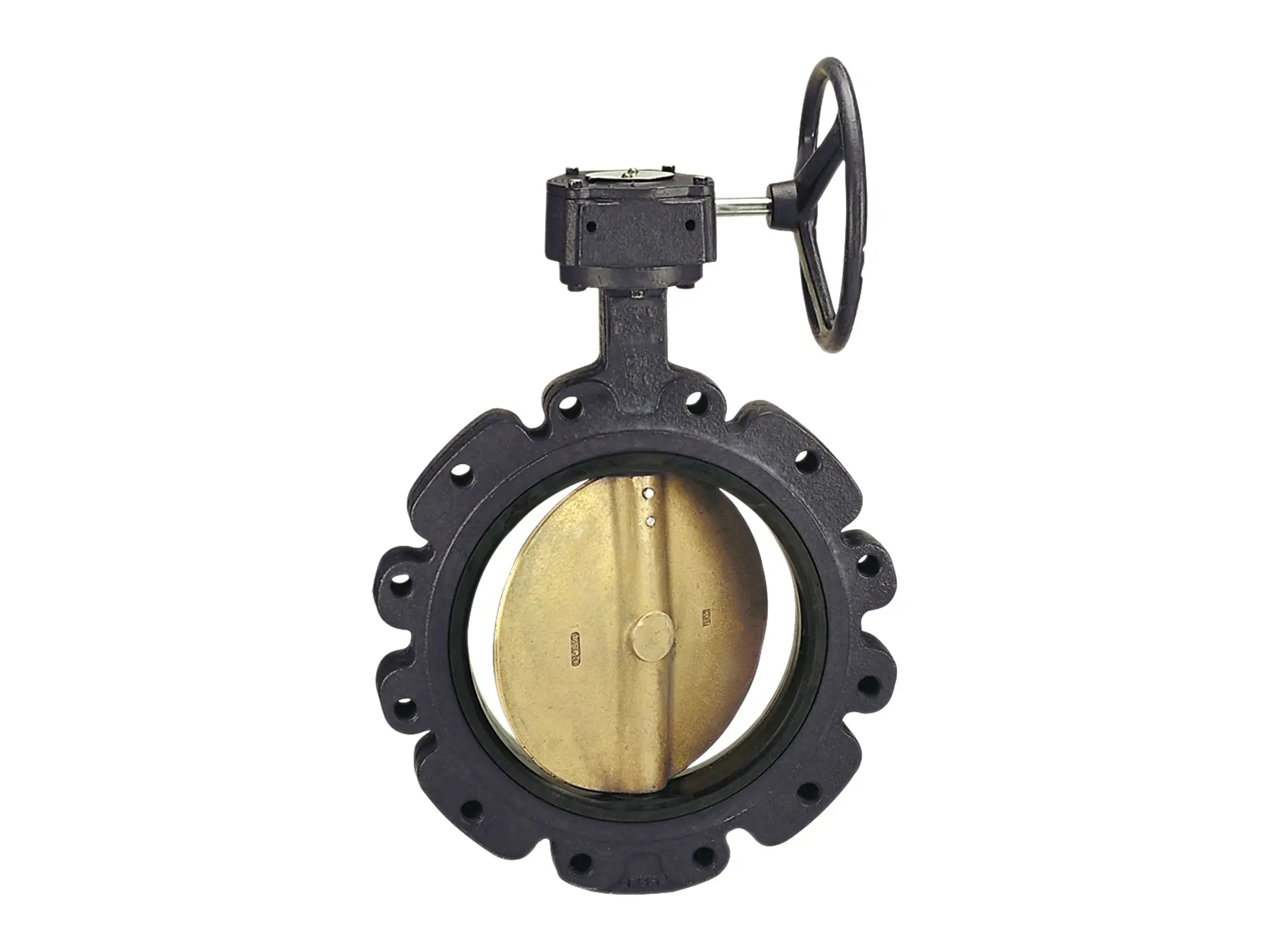

This NIBCO lug type butterfly valves provides bubble-tight shutoff at 150 psi and bi-directional dead-end service without a downstream flange to 150 psi. The valve is recommended for commercial and some light industrial process applications, in addition to HVAC and hot and cold potable water. NIBCO ductile iron butterfly valves provide ease of operation with quarter-turn (90 degrees) open to close. The EPDM cartridge liner with ductile iron, electro nickel plated disc is recommended for most water applications. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- Valve pressure rating 150 psi
- 225°F continuous and 250°F intermittent service
- Lug style
- EPDM cartridge seat liner
- Electro nickel plated disc
- Stainless steel stem with bronze bushings
- Extended neck
- Operating mechanism: Bare stem, manual gear operator and pneumatic/electric automation
- Not recommended for steam service
- Designed to meet MSS SP-67
- MSS SP-25 (markings)
