Description

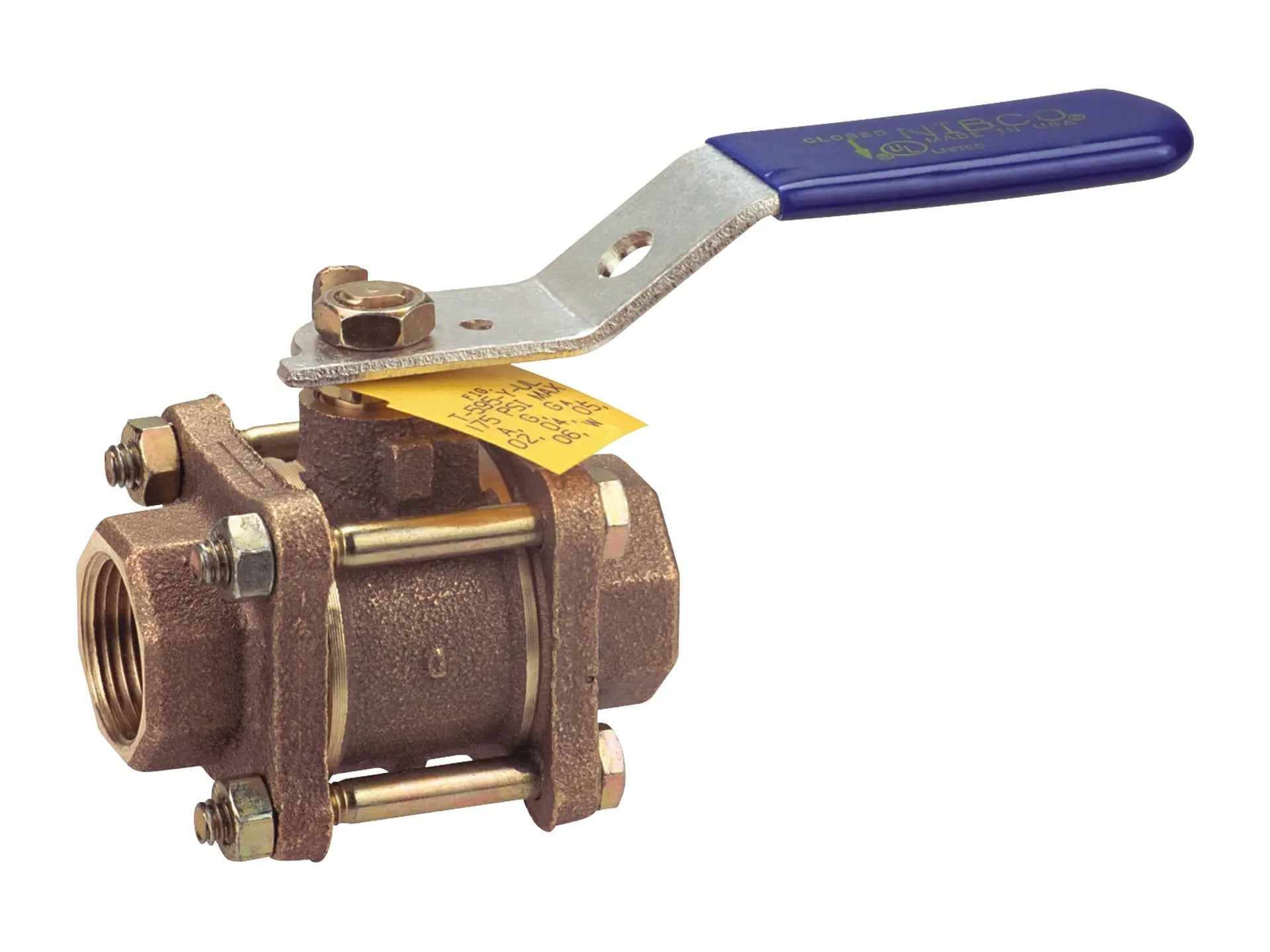

This NIBCO bronze ball valve provides bubble-tight shutoff at 175 psi. The three-piece valve is ideal for numerous gas applications, compressed air, and vacuum service. It is listed by Underwriters Laboratories for flammable fluid applications. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line. This NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features threaded ends for easy installation. Options include NIB-SEAL insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 175 psi 12.1 bar non-shock LP gas per UL842
- Maximum temperature rating 400°F
- Full port
- Blowout-proof stem
- Chrome plated brass ball, silicon bronze stem
- Standard lever handle, optional NIB-SEAL®
- Threaded end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
- Underwriters Laboratories UL842
