Description

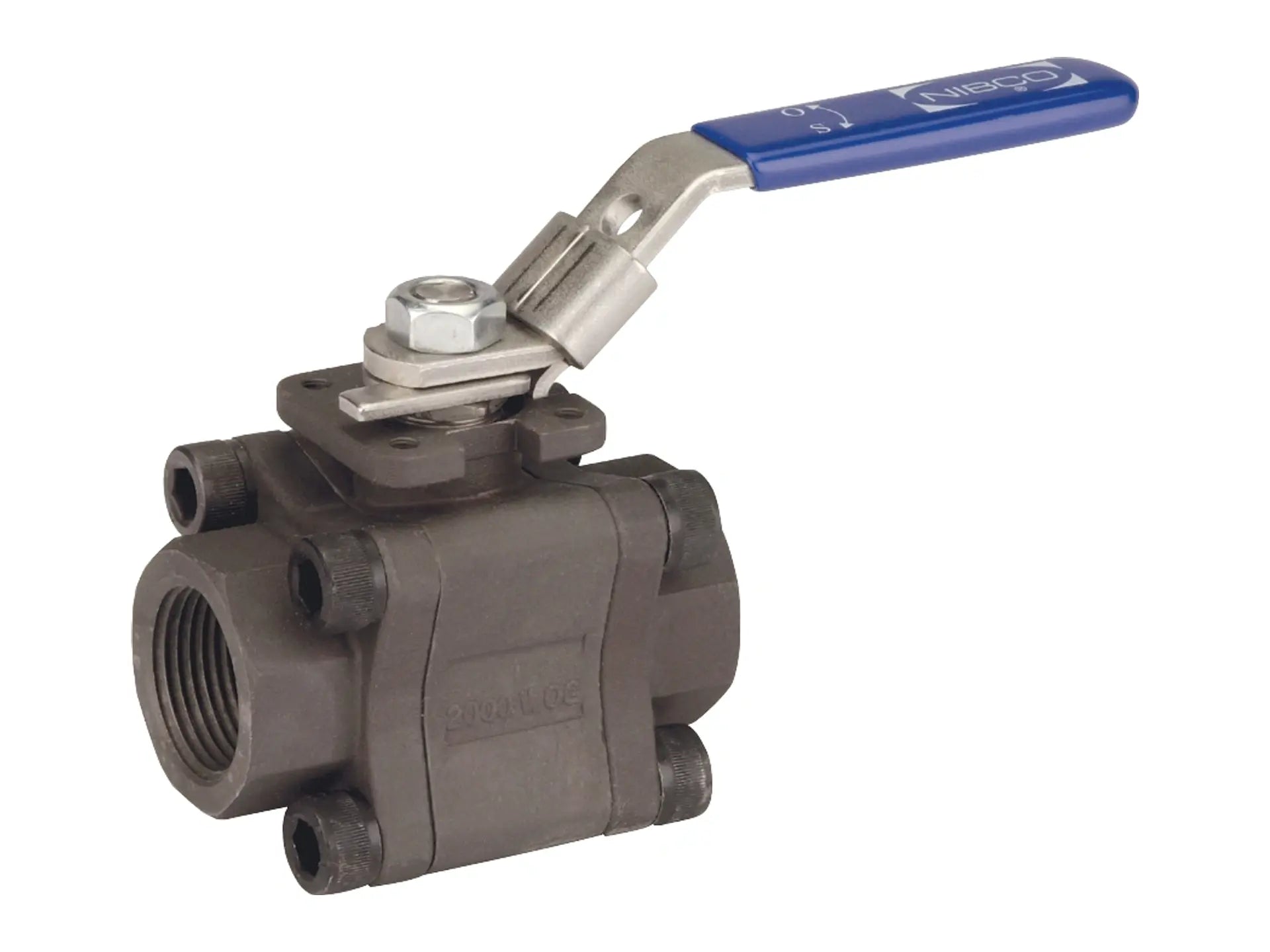

This NIBCO carbon steel ball valve provides bubble-tight shutoff at 2000 psi. The valve is available with threaded pipe connections and cast ISO mounting pad for actuation purposes. The three-piece valve is recommended for petrochemical and utility service applications. It meets Fire Safe and Anti-Static requirements. This NIBCO carbon steel ball valve provides ease of operation with quarter-turn (90°) open to close. The reinforced PTFE 15% glass seat ring, Graphite stem packing and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. The valve also features an enclosed bolt design. This valve features a standard lockable lever handle for security purposes. It may be used for isolation and throttling (half open to full open only). Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Conventional port
- Blowout-proof stem
- Enclosed bolt design
- Reinforced PTFE seats
- Stainless steel ball and stem
- Vented ball
- Locking lever handle
- Cast ISO mounting pad
- Threaded ISO mount end connections
- Conforms to MSS SP-110
- API-607 Fourth Edition Fire Safe
- API-608 Anti-Static
