Description

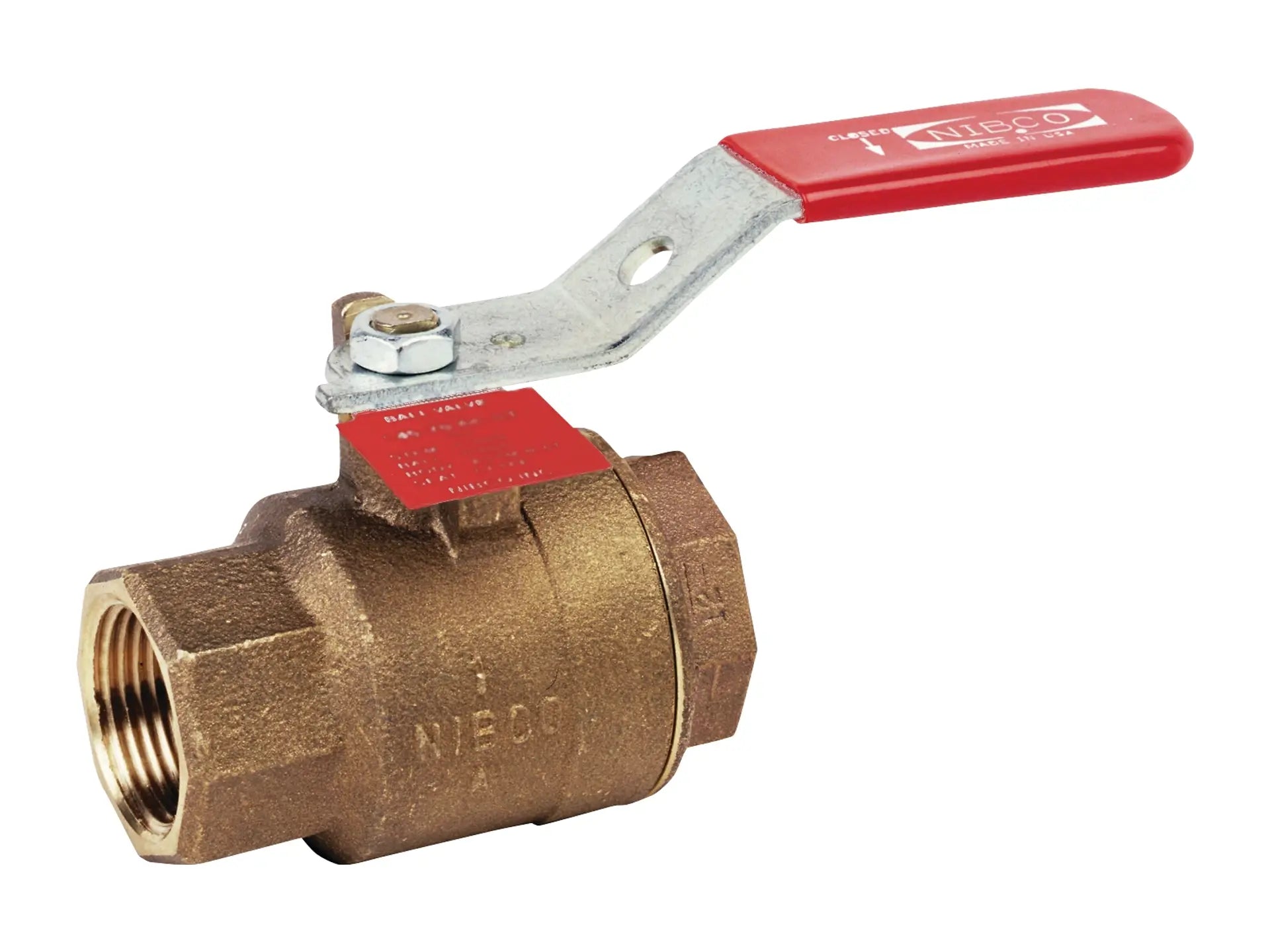

This NIBCO conventional port bronze ball valve provides bubble-tight shutoff at 300 psi non shock water working pressure (WWP). The two-piece valve is ideal for automatic fire sprinkler trim application. This NIBCO conventional port bronze ball valve provides ease of operation with quarter-turn (90°) open to close. The two-piece valve features threaded end connections for easy installation. The valve is FM Approved and Underwriters Listed for automatic fire sprinkler trim application (UL258). Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical, fire protection and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- 300 psi/20.7 bar non-shock water working pressure (WWP)
- Blowout-proof stem
- Chrome plated brass ball and silicon bronze stem
- Standard lever handle
- Dezincification resistant
- Threaded end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
- UL listed (UL258) (1-1/4″ to 2″ only)
- FM Approved
