Description

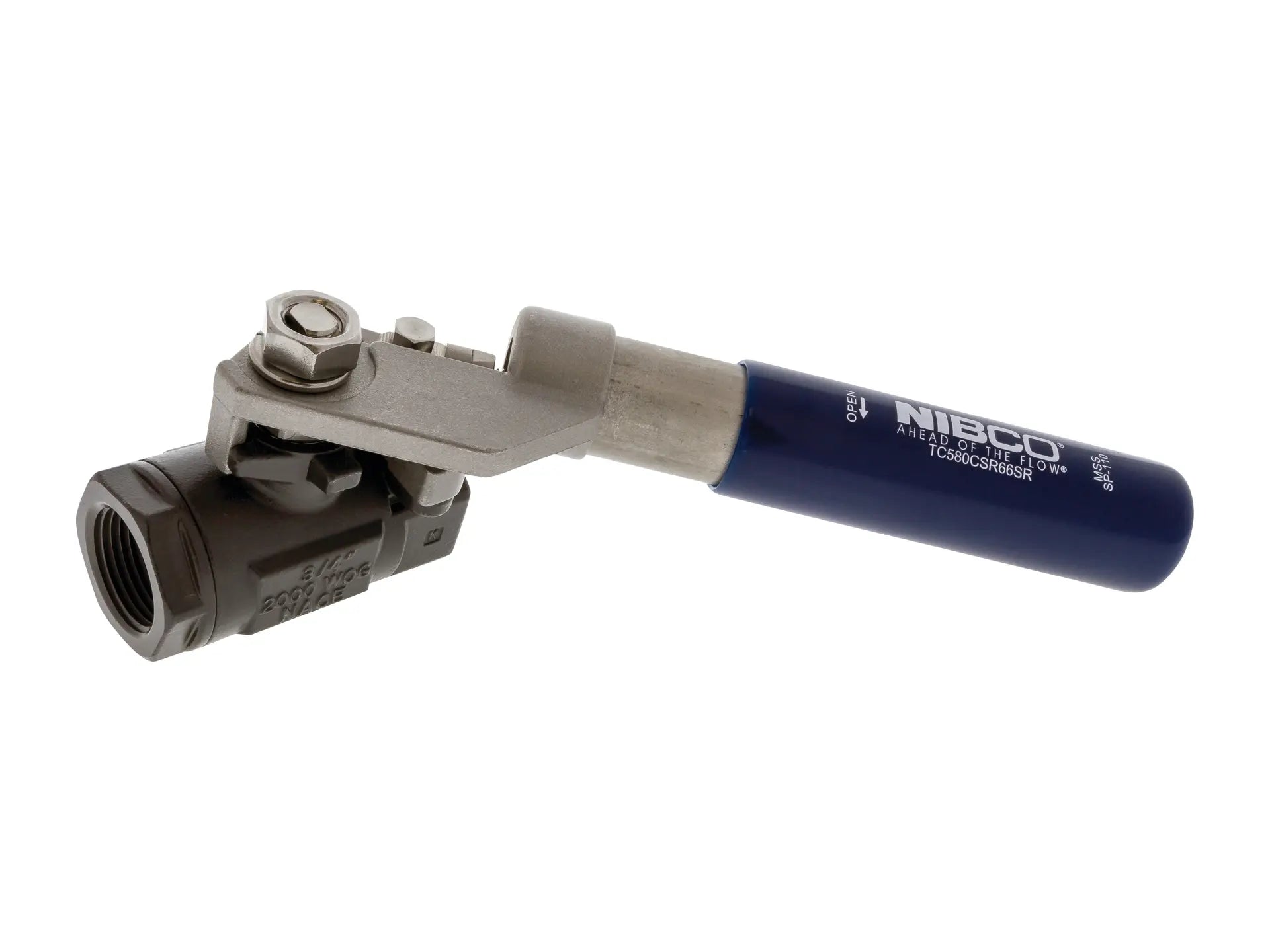

This NIBCO spring return handle ball valve allows for manual opening as required, but automatically defaults to the closed position. The valve can be installed in applications such as sampling, draining, or refueling operations. The handle is robustly constructed of stainless steel material. This NIBCO bar stock carbon steel ball valve provides bubble-tight shutoff at 2000 psi. The reinforced PTFE seat ring and stainless steel ball and stem exhibit high chemical resistance properties and is recommended for process piping. The two-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. This valve features threaded ends for easy installation. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified and versatile valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Features
- Spring Return Handle
- Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Conventional port
- Blowout-proof stem
- Stainless steel ball and stem
- Vented ball
- Threaded end connections
- Conforms to MSS SP-110
- Conforms to NACE MR0175
