Description

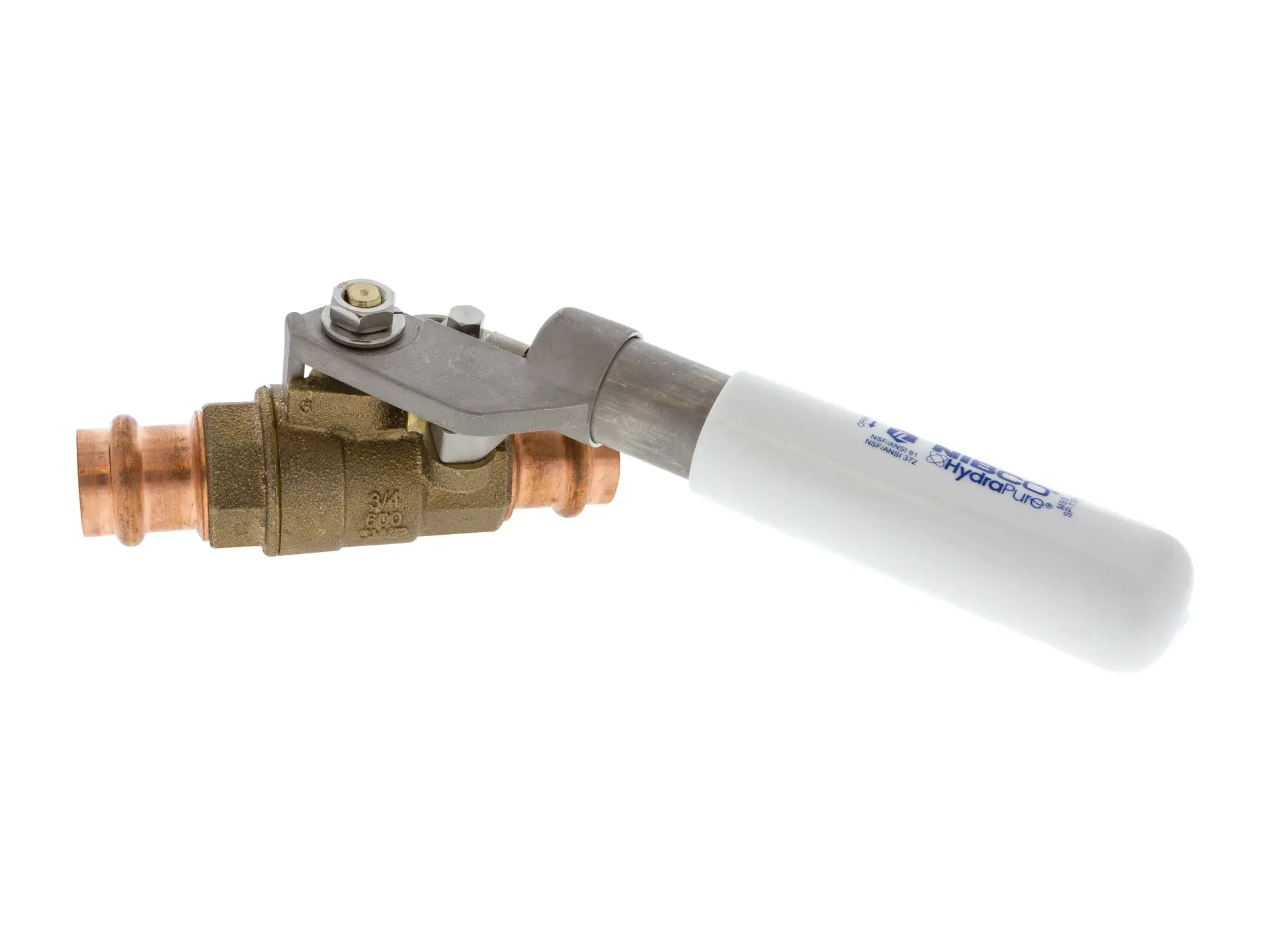

This NIBCO spring return handle ball valve allows for manual opening as required, but automatically defaults to the closed position. The valve can be installed in applications such as sampling, draining, or refueling operations. The handle is robustly constructed of stainless steel material. The ball valve is designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. This NIBCO Press System is user friendly, quick and easy to install. The ball valve provides ease of operation with quarter-turn (90°) open to close. The two-piece valve is made of lead-free warranty.
Features
- Spring Return Handle
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Maximum service temperature 250°F
- Full port
- Blowout-proof stem
- Silicon Performance Bronze® body and stem
- Vented DZR ball
- Press x press female end connections
- Dezincification resistant
- Lead-free
- Conforms to MSS SP-110/145
- NSF/ANSI/CAN 61-8 Commercial Hot 180° F
- NSF/ANSI 372
- IAPMO/ANSI Z1157
