Description

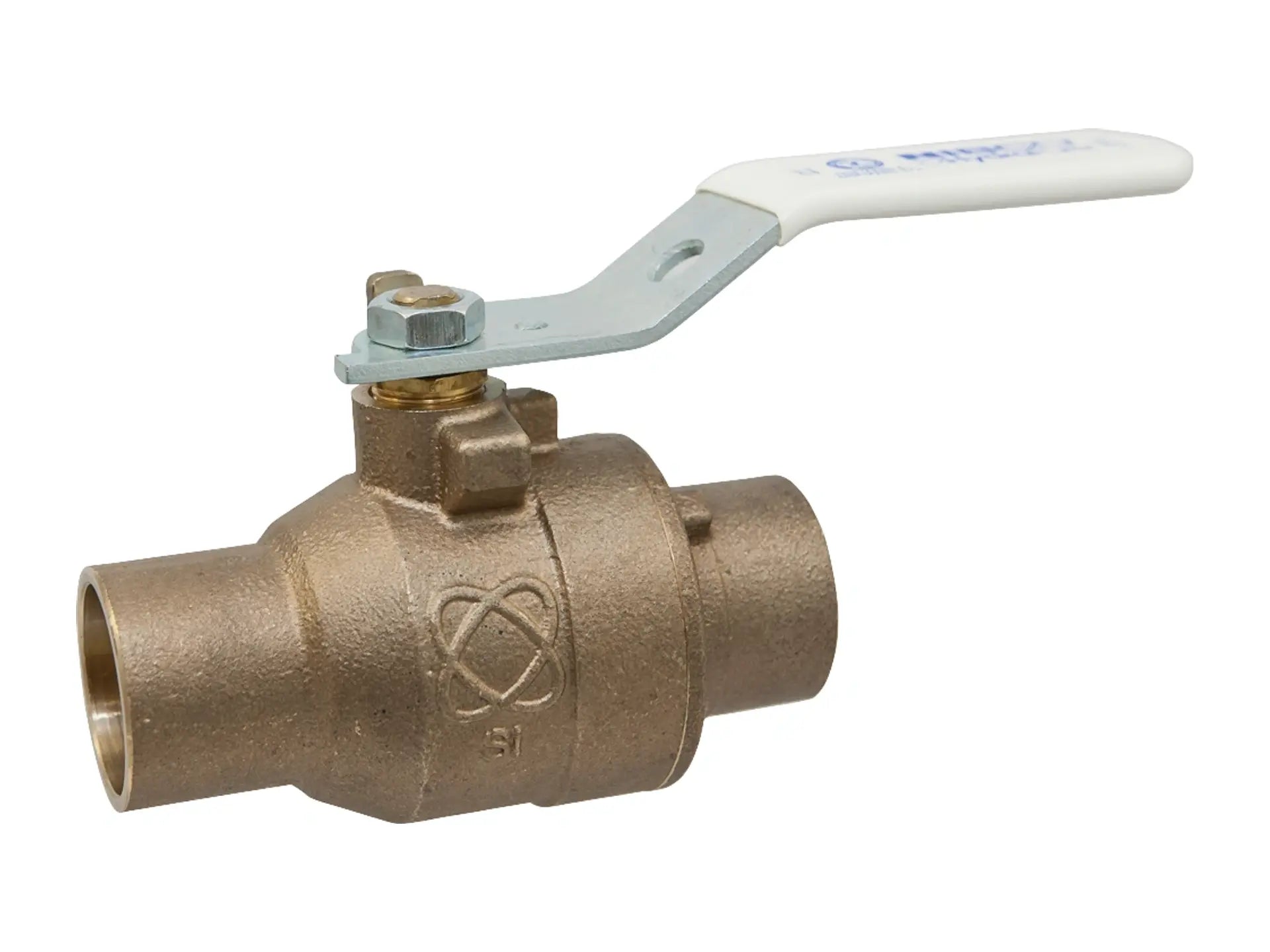

This NIBCO ball valve is lead-free bronze with a silicon bronze stem and ball. It is ideal for use in applications that deliver water for human consumption, including residential and commercial construction. This NIBCO bronze ball valve provides easy operation with a quarter-turn (90°) open to close. The two-piece valve features solder ends for easy installation. Please refer to the NIBCO technical data sheet, valve selection guides, and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile, and economical valve options in commercial, residential, mechanical, and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Max temperature rating 300°F
- Full port
- Silicon Performance Bronze® body, ball, and stem
- Blowout-proof stem
- Standard lever handle, optional NIB-SEAL®, Locking Lever, Memory Stop, Extended Lever, Round and Wing
- NIBCO® HydraPure® Lead-free
- Solder end connections
- Dezincification resistant
- Lead-free
- Conforms to MSS SP-110
- NSF/ANSI-61 Section 8 Commercial Hot 180°F (includes Annex F and G)
- NSF/ANSI-372
- IAPMO/ANSI Z1157
