Description

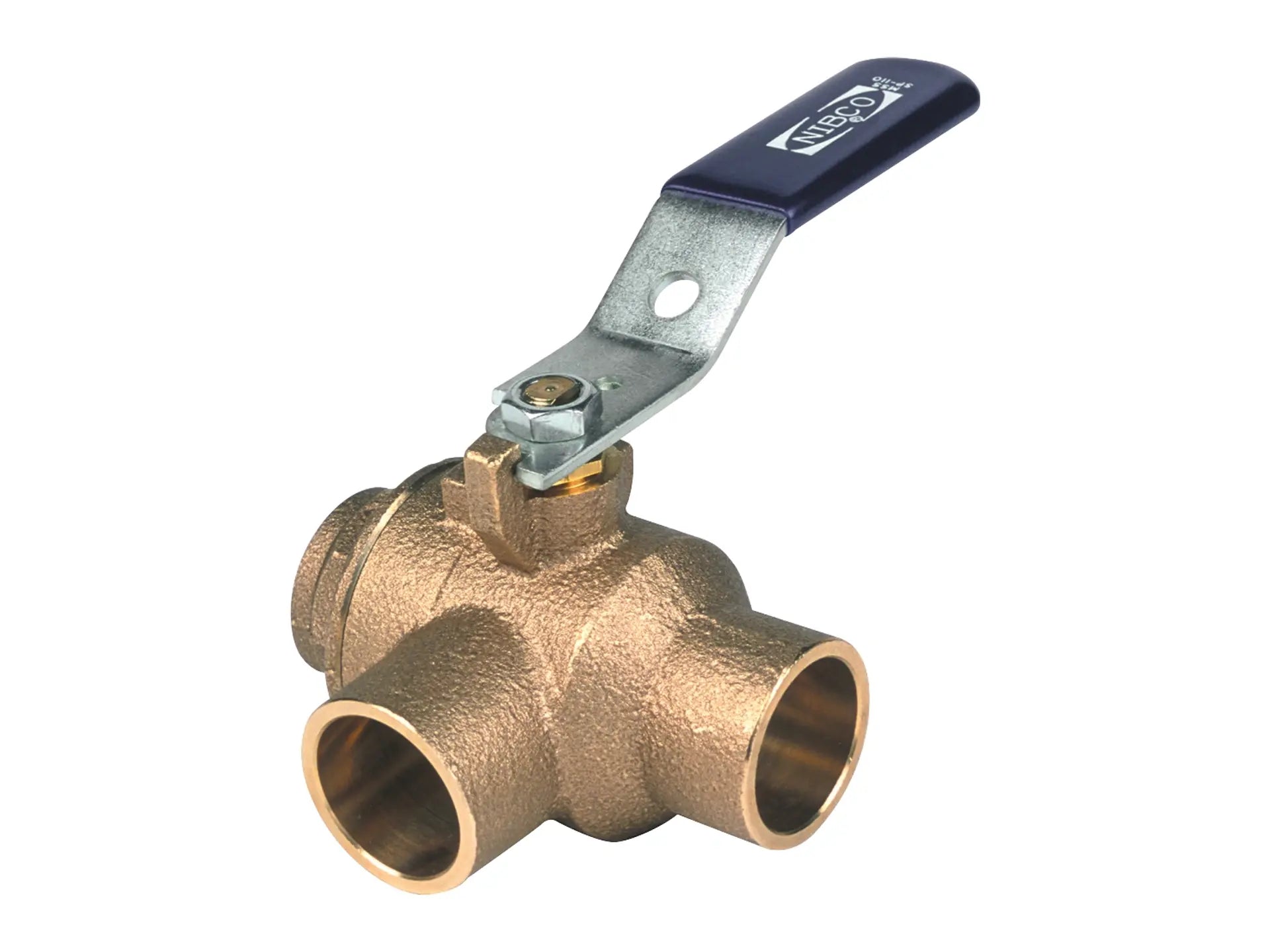

This NIBCO three-way bronze ball valve is ideal for commercial and light industrial process applications that may include mixing of fluids. This NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close, and bubble-tight shutoff at 400 psi. The reinforced PTFE seat ring and brass hard chrome plated ball exhibit high chemical resistance properties and is recommended for many high pressure applications. The two-piece valve features solder ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 400 psi 27.6 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Full port
- Three-way body
- Chrome plated brass ball, silicon bronze stem
- Blowout-proof stem
- Standard lever handle, optional NIB-SEAL®
- Solder end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
