Description

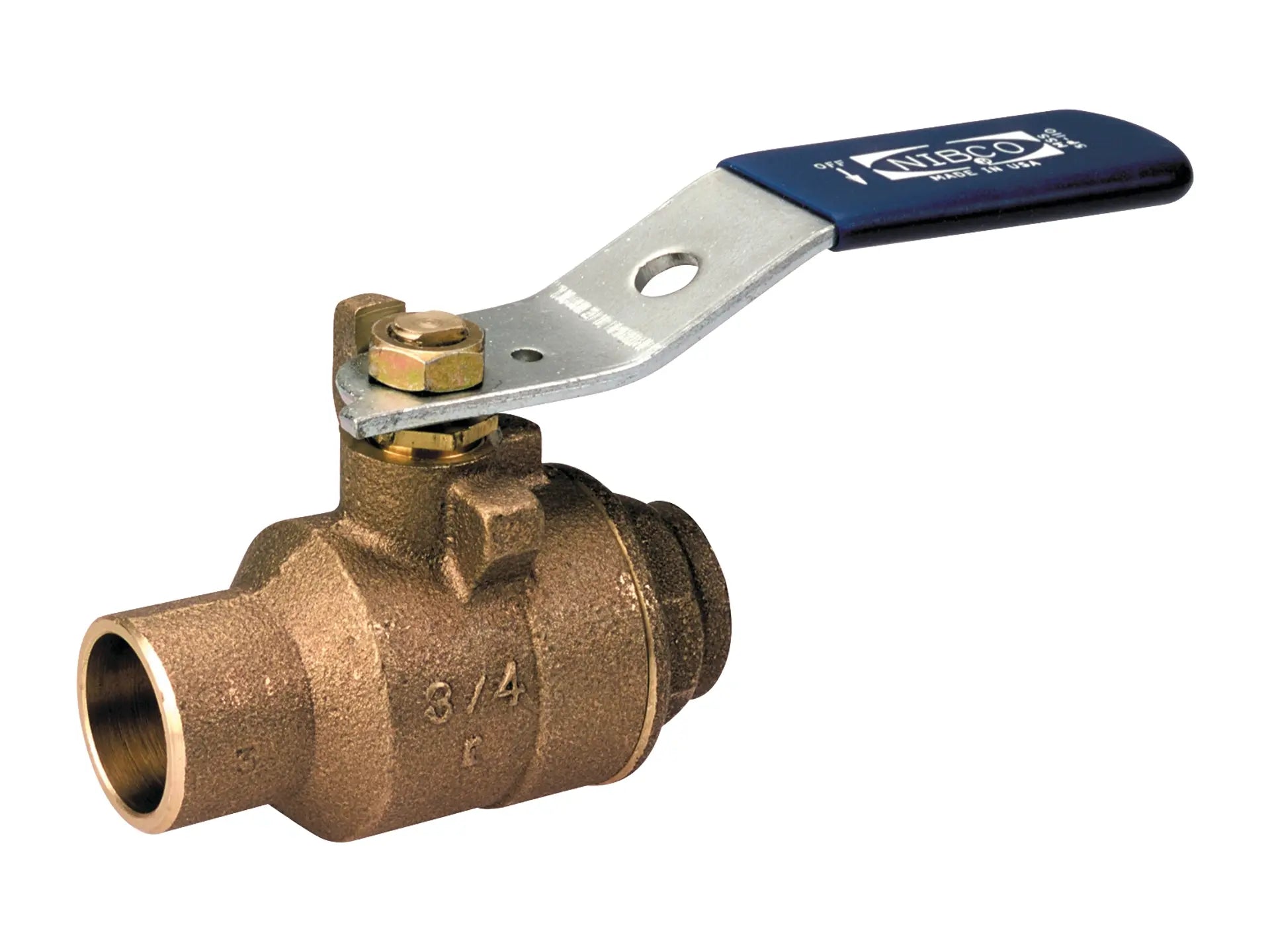

This NIBCO bronze ball valve features a reinforced PTFE seat ring with a stainless steel vented ball. The valve has high chemical resistance properties and is recommended for many high pressure applications. The two-piece valve provides bubble-tight shutoff at 600 psi. This NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close. Options include NIB-SEAL insulated handle that eliminates condensate. The valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam and hot water heating service. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Conventional port
- Stainless steel ball and stem
- Vented ball
- Blowout-proof stem
- Standard lever handle
- Solder end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
