Description

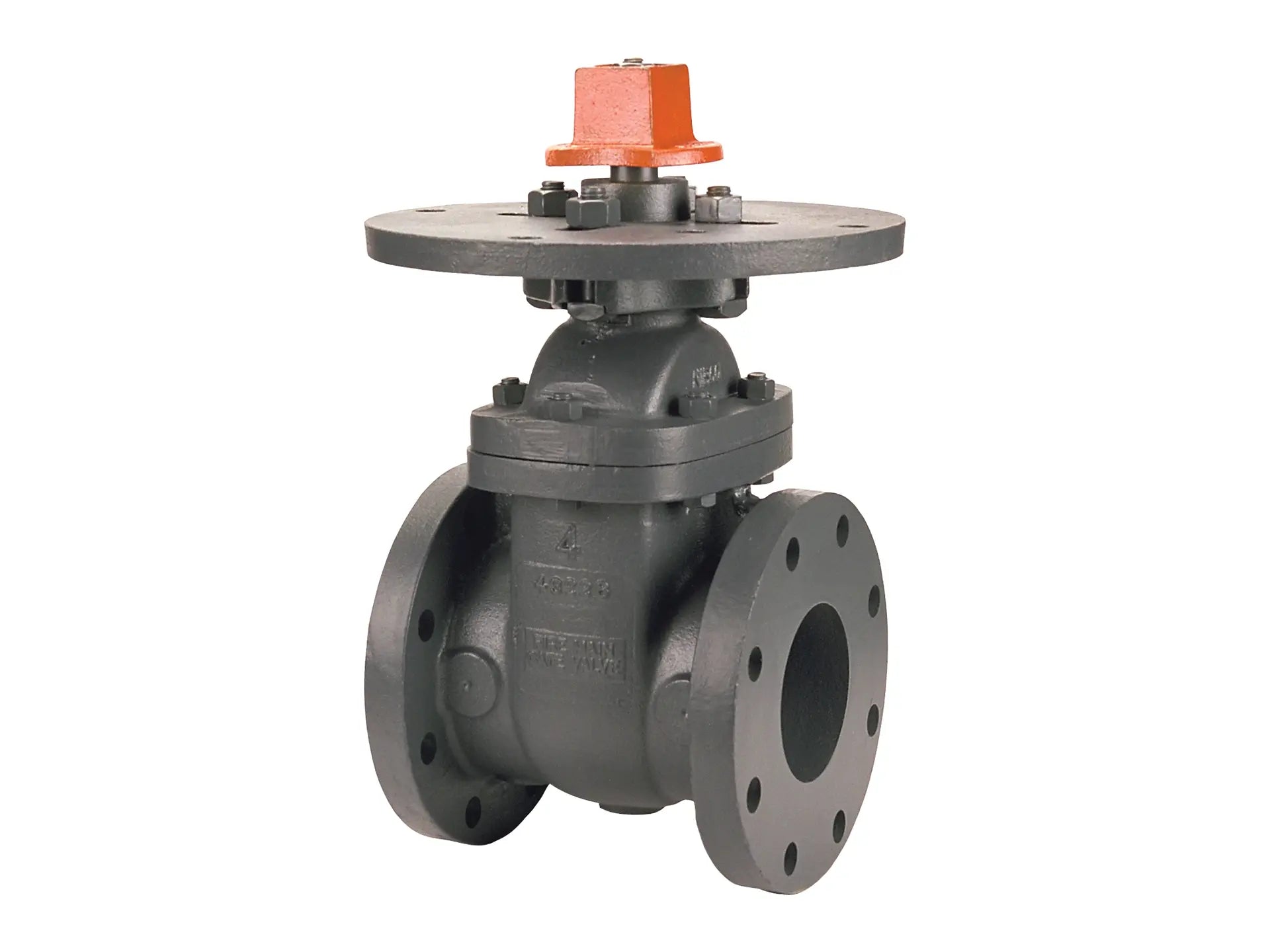

This NIBCO cast iron 175 water working pressure (WWP) gate valve provides full flow with minimal pressure drop. The flanged cast iron gate valve is recommended as a system control valve to be used in conjunction with vertical or wall indicator posts. This NIBCO cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. These valves are Underwriters Listed and FM Approved for fire protection systems as system control valves. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical, fire protection and industrial applications. NIBCO pressure rated valves are backed by the NIBCO 5-year 125% limited warranty.
Features
- 175 psi/12.1 bar non-shock water working pressure (WWP)
- Bolted bonnet
- Solid wedge
- Iron body, bronze mounted trim (IBBM)
- Class 125 flanged or mechanical joint end connection
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Listed by UL/ULC (UL262) Canadian ULC/ORD-C262
- FM Approved
