Description

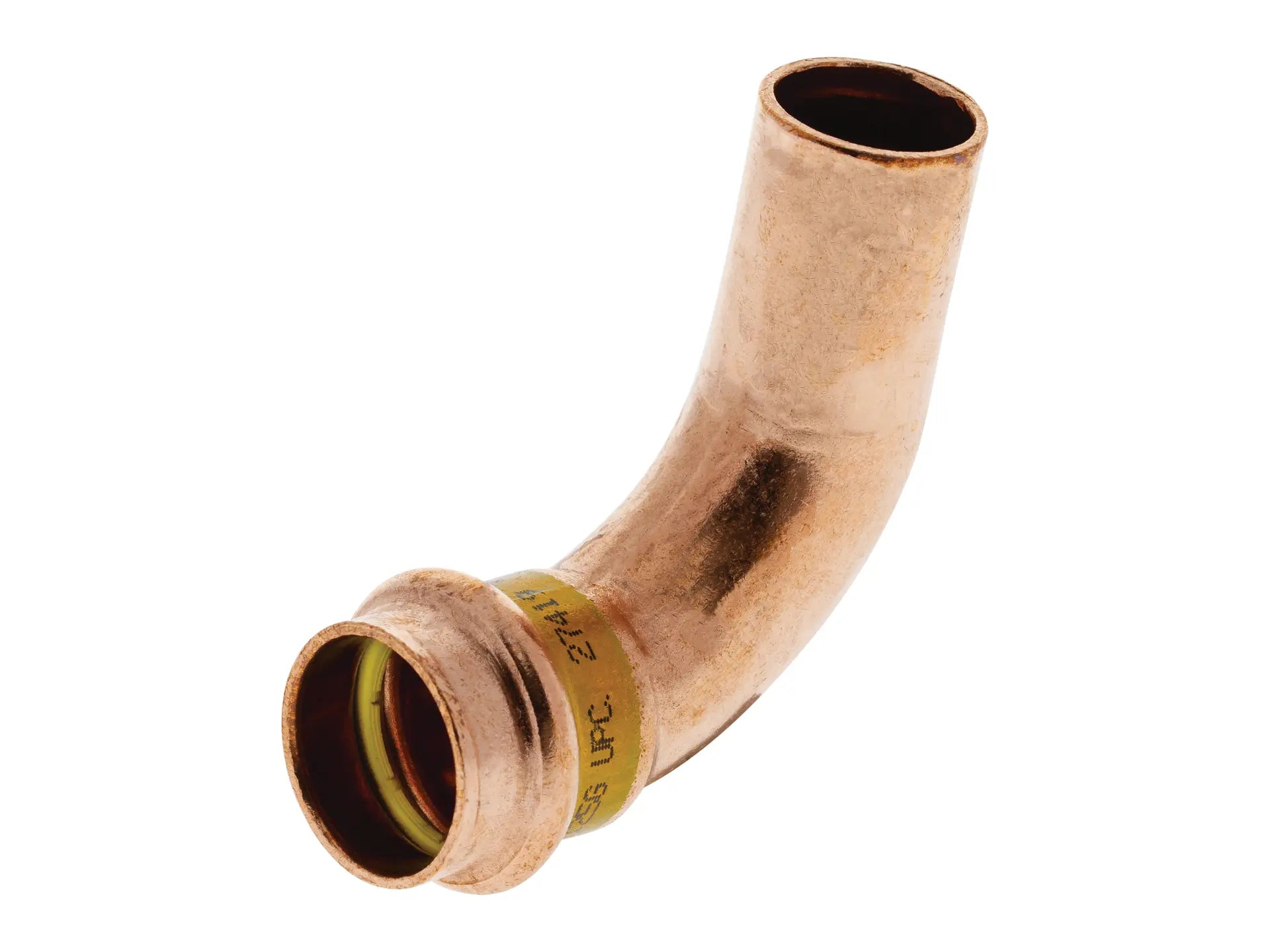

This PressG copper 90° fitting elbow features an inboard bead and yellow HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux. The elbow has a male fitting end and a press connection. The fitting provides a method of changing the pipeline direction by 90° between a press connection and fitting connection which can either be soldered or pressed.
Features
- Operating pressure 200 PSI max, (125 PSI for natural gas applications) depending on the application.
- Temperature range -40°F to 180°F
- ASTM b75 alloy c12200 copper
- IFGC international fuel gas code
- NFPA 54/Z223.1 national fuel gas code
- NFPA 58 liquified petroleum gas code
- UPC chapter 12 fuel piping
- NFPA30 flammable and combustible liquids code
- NFPA30A code for motor fuel dispensing facilities and repair garages
- NFPA 31 standard for the installation of oil burning equipment (supply line only)
- Third party certified to ANSI lC4/CSA 6.32
- Third party certified to IAPMO/UPC lCL-4
- ICC-ES PMG 1036
