Description

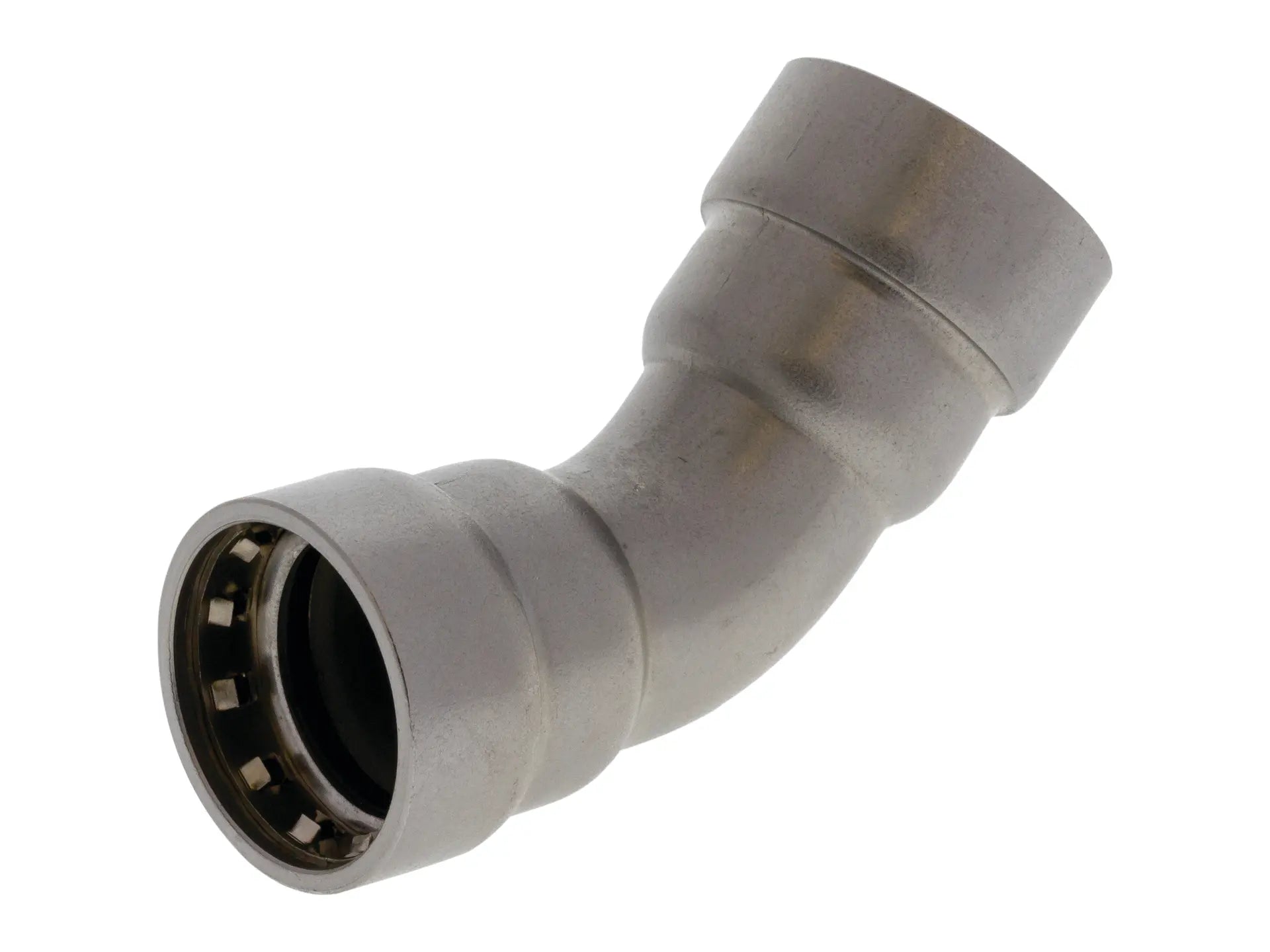

This BenchPress carbon steel 45° elbow features a black EPDM O-ring and stainless steel gripper ring. Simply applying pressure from a pressing tool tightens the O-ring onto the pipe, ensuring a clean and secure seal in seconds with no threading required. The elbow has press connections. The fitting provides a method of changing the pipeline direction by 45°.
Features
- Operating pressure up to 200 psi cwp depending on the application
- Temperature range -20°F to 250°F depending on the application
- Third party certified to IAPMO PS-117
- NFPA 13, 13D and 13R
- IRC international residential code (ICC PMG)
- IMC international mechanical code (ICC PMG)
- UPC Uniform plumbing code
- UMC Uniform mechanical code
- ASME B31 code for pressure pipe
