Description
Specifications

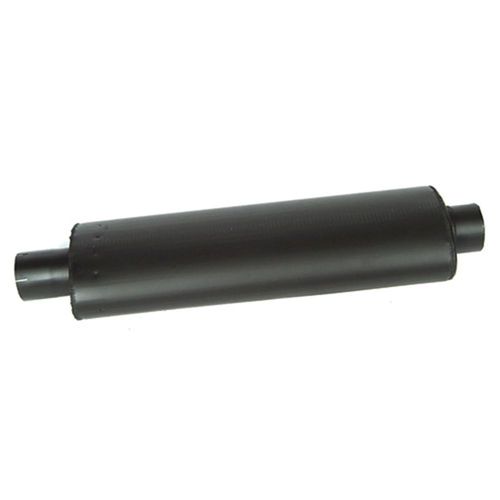

- Stanley Muffler brand
- Made to fit John Deere Row Crop Tractors 1960 and up
- Part Number: DR-34
- Tractor application: 4640, 4650, 4840, 4850, 4555, 4755
- Note: new design-replaces flared inlet muffler
- Inlet clamp included (DR-400A)
- Vertical-Oval Body Shell: 5-1/2 in. x 9-1/2 in.
- Inlet Length: 5 in.
- Inlet Inside Diameter: 3-15/16 in.
- Shell Length: 30-1/4 in.
- Outlet Length: 3-1/4 in.
- Outlet Overall Diameter: 4 in.
- Overall length: 38 in.
- Replaces OEM: RE 20222, AR 86602, AR 77304
- Rain Cap: RC-9
