Description

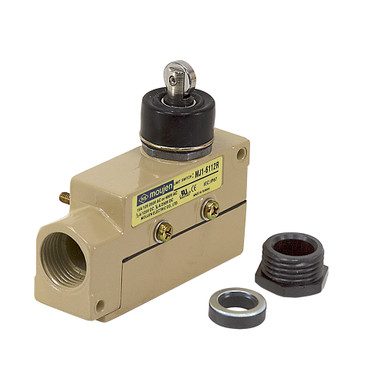

ROLLER PLUNGER ENCLOSED LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Roller plunger at 90 degrees to switch body. Rubber boot on actuator to protect switch. Gasket on metal housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 20 operations per minute. 1/2″ conduit entry.
SPECIFICATIONS
- Model MJ1-6112R
- Contact Type Single Pole Double Throw
- Contact Ratings15 Amps @ 250 VAC
- Actuator DetailsRoller Plunger (aligned with body)
- Operating Force Max. 250-450g
- Releasing Force 114g
- Pre-Travel Max.0.8mm
- Over-Travel Min.3.6mm
- Differential Travel Max. .05mm
- Operating Position 50.7±0.8mm
- TerminalsScrew
- Side Mount 2 M4 screws, 1″ c/c
- Size 3.375″ x 1″ x 1.75″ (housing only)
- Shpg. 1 lbs.
