Description

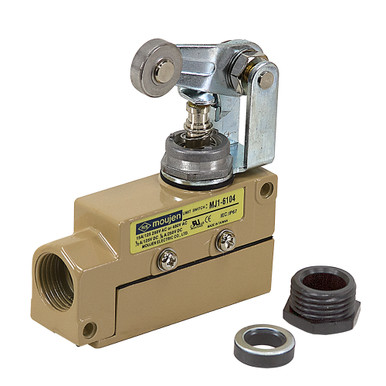

ROLLER LEVER ENCLOSED LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Gasket on metal housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 20 operations per minute. 1/2″ conduit entry.
SPECIFICATIONS
- Model MJ1-6104
- Contact Type Single Pole Double Throw
- Contact Ratings15 Amps @ 250 VAC
- Actuator DetailsRoller Lever (aligned with body)
- Operating Force Max. 570g max.
- Releasing Force 170g
- Pre-Travel Max.4mm
- Over-Travel Min.6mm
- Differential Travel Max. 0.4mm
- TerminalsScrew
- Side Mount 2 M4 screws, 1″ c/c
- Size 3.375″ x 1″ x 1.75″ (housing only)
- Shpg. 1 lbs.
