Description

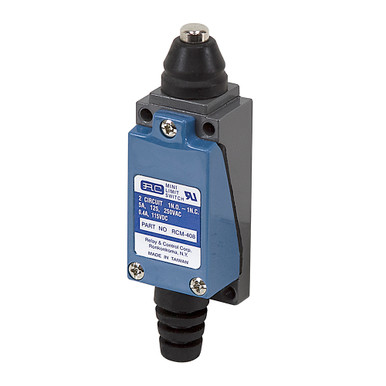

TOP PUSH ROD MINI LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Gasket on housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-160°F. Maximum operating frequency 30 operations per minute. Rubber strain relief. Metal base with plastic cover.
SPECIFICATIONS
- Brand Relay & Controls Corp
- Model RCM-408
- Contact Type 1 Normally Open, 1 Normally Closed
- Contact Ratings 5 Amps @ 250 Volt AC
- Actuator details Push rod
- Operating Force Max. 900g
- Release Force Min. 150g
- Pre-Travel Max. 1.5mm
- Over-Travel Min. 4mm
- Differential Travel Max. 0.7mm
- Total Travel Min. 5mm
- Terminals Screw
- Mount 4 holes 21mm x 56mm
- Size 1.125″ x 0.97″ x 3.22″ (housing only)
- Shpg. 1 lbs.
