Description

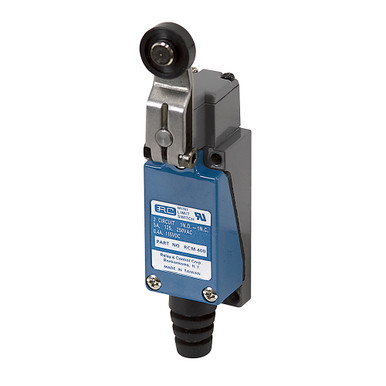

ROLLER LEVER MINI LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Gasket on housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-160°F. Maximum operating frequency 30 operations per minute. Rubber strain relief. Metal base with plastic cover.
SPECIFICATIONS
- Brand Relay & Controls Corp
- Model RCM-400
- Contact Type 1 Normally Open, 1 Normally Closed
- Contact Ratings 5 Amps @ 250 Volt AC
- Actuator details 1.91″ arm w/0.688″ dia. roller
- Operating Force Max. 600g
- Release Force Min. 50g
- Pre-Travel Max. 20°
- Over-Travel Min. 75°
- Differential Travel Max. 10°
- Total Travel Min. 95°
- Terminals Screw
- Mount 4 holes 21mm x 56mm
- Size 1.125″ x 0.97″ x 3.22″ (housing only)
- Shpg. 1 lbs.
