Description

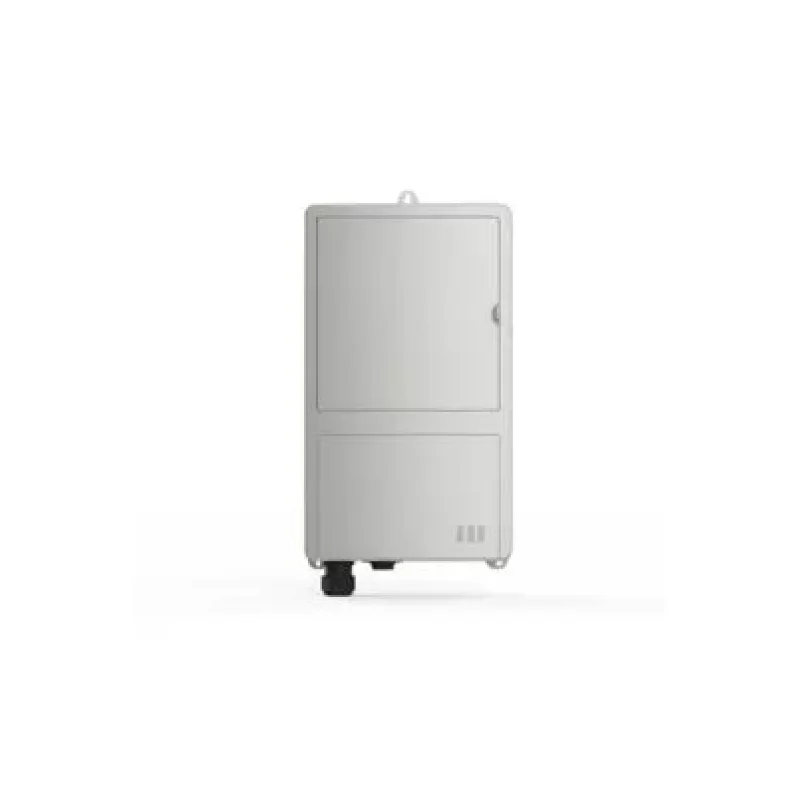

Mango Power M-Panel Pro
Backup power for essential home appliances:When the grid goes down, the mPanel Pro instantly switches the essential loads power supply from grid to battery.
This product can only be connected with Mango Power E Power Station.
What’s in the box:
- 1x Mango Power mPanel Pro
- 1x User Manual
- 1x Warranty Card
Specifications:
Size:21.73×11.02×3.86 inches (552x280x98 mm)
Weight:10.36 Ibs (4.70 kg)
Compatibility:Works with MANGO POWER Union and MANGO POWER E
Output voltage:120V/240V
System frequency:50Hz/60Hz
Control circuits:1
Output port:4x15A
Max backup power:6000W
Main function:Switch both DoublePhase grid and DoublePhase backup
IP Level:IP21
Working temperature:-4F~140F (-20~60)
Installation:Wall mount, to be installed by a licensed electrician
Warranty:1 year
