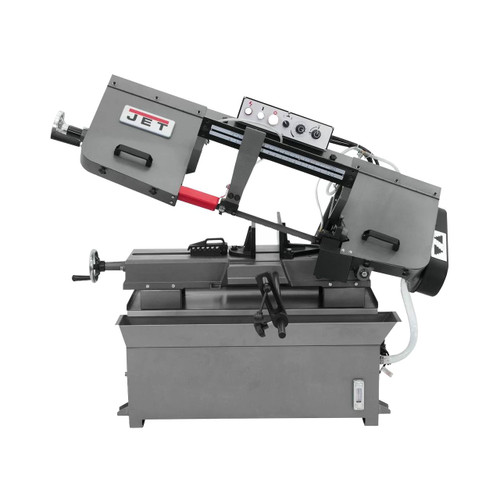

Description
Large hand wheel and built-in gauge provides easy blade tensioning. Carbide blade guides feature parallel double-row ball bearing support. Coolant is distributed through the blade guides. Built-in, self-propelled blade brush extends blade life. Quick-positioning vise with fully adjustable jaws, swivels to 45°. Proprietary oversized chip tray design minimizes over spray and reduces clean up. Adjustable material stop.
Blade Speed (SFPM): 82, 132, 170, 235
Blade Wheel Diameter: 13″
Cutting Capacity: 9″ x 16″
Drive: Belt
Motor: 1-1/2 HP, 115/230V, 1Ph
Overall size: 65″L x 28″W x 42″H
Prewired Voltage: 115
Rectangle at 45°: 9″ x 6-1/8″
Rectangle at 90°: 8-1/2″ x 14″ and 2″ x 16″
Round at 45°: 6-1/8″
Round at 90°: 9″
Vise Swivels: 45°
Weight: 818 lbs.
