Description

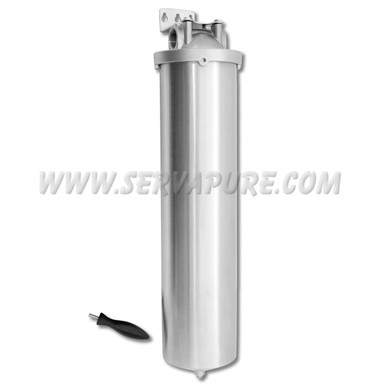

Hydroscientific HF45SS series stainless steel single cartridge housings are ideal for commercial and industrial applications. Made with heavy-duty 304 or 316 SS construction for maximum durability, HF45SS series housings accept 4.5″ (Big Blue style) Double open-ended (DOE) cartridges. Designed for high-temperature and high-pressure applications, the HF45SS series housings ring nut closure provides quick cartridge changeouts.
– Accepts 4.5″ x 20″ Big Blue Style Double Open Ended (DOE) cartridges
– Heavy-duty 304L or 316L stainless steel construction for maximum durability- Designed for high-temperature and high-pressure applications- Ring nut closure for quick cartridge changeouts- Spring-loaded knife edge seal – Commercial and Industrial application- 1/4″ FNPT Drain port standard- Drain Plug Replacement Seal Size 013 Material FKM Applications– Chemicals – Electronics- Wastewater- Potable Water- Food & Beverage- RO Prefiltration- Plating Solutions- Coolants/Inks/Paints/Coatings- Photographic Solutions
Materials of Construction
– Body: 304 or 316 SS- Head: 304 or 316 SS- O-ring: EPDM Port Dimensions– In/Outlet: 1″ FNPT- Drain: 1/4″ FNPT Operational Data– Max. Working Pressure: 300 PSI- Max Operating Temperature: 200°F
