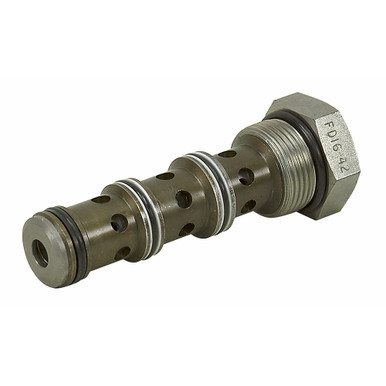

HYDRAFORCE FLOW REGULATOR VALVE FD16-42-0-N-33
New, Hydraforce. A screw-in, cartridge-style, spool-type flow divider/combiner. Standard flow dividing/combining ratios are maintained regardless of system operating pressure conditions.
In the dividing mode, the FD16-42 will divert input flow from port 3 to ports 2 and 4 based on the ratio specified, regardless of operating pressure. The cartridge will combine input flows from both 2 and 4. The FD16-42 is designed to maintain a flow path to both combining ports 2 and 4 when one port is “free-wheeling”. This feature keeps hydraulic (parallel) motor drive circuits from stalling in the combining mode only.
SPECIFICATIONS
- Brand HydraForce
- Model FD16-42-0-N-33
- Type Flow Divider/Combiner, Anti-Stall
- Pressure Rating 3500 PSI max.
- Pressure Setting None
- Flow 19.5 GPM max.
- Fits into VC16-4 Cavity
- Features 50/50 Split, Cartridge Only
- Overall Size 4-5/8″ x 1-5/8″ dia.
- Shpg. 1.5 lbs.
