Description

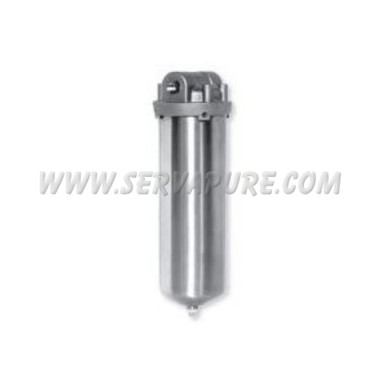

FSSS Series Filter Housings are designed with a double o-ring compression which allows for positive sealing and easy access. Offered in DOE (double open end) or 222/Flat configurations
Features
– 304 stainless steel construction
– 300 psi (20.7 bar) pressure rating
– Electro-polished finish
– Offered in double open end or 222/flat configurations
– Double o-ring compression seal for easy change out
– Inlcudes 1/8″ NPT vent and 1/8″ NPT drain
– Inline design for easy installation
– Knife edge seal at both cartridge ends to eliminate by-pass for DOE cartridges
– Standard with wrench and mounting bracket
– Manufactured in the USA
Applications
– Food & Beverage Filtration – Lubricants
– Reverse Osmosis Pre-Filtration – Plating Solutions
– Process Water Filtration – High Purity Water
– Cuting Fluids – Inks
Specifications
| Filter Model | FSSS-3B |
| Cartridge Length | 30″ |
| In/Out Pipe Size |
1″ |
| End Configuration |
DOE |
| Material |
304 SS |
| Housing Height |
33.25″ |
| I/O Width |
3.3″ |
| Diameter |
4.15″ |
| Inlet Height |
32.75″ |
| Weight |
15 lbs |
– Finish – Electropolished
– Inlet/Outlet – 3/4″ on 9-3/4″ Housings, 1″ and 30″ Housings
– Construction – 304 or 316 SS
– O-Ring Seal – Silicone
– Bottom Seals – natural gum rubber, standard; EPDM, Viton Available
– Pressure – Up to 300 psi (20.7 bar) max
– Temperature – rated up to 250°F (121°C) filter housing only
– Wing Nuts – brass; optional brass hex nuts and stainless steel flat washers
