Description

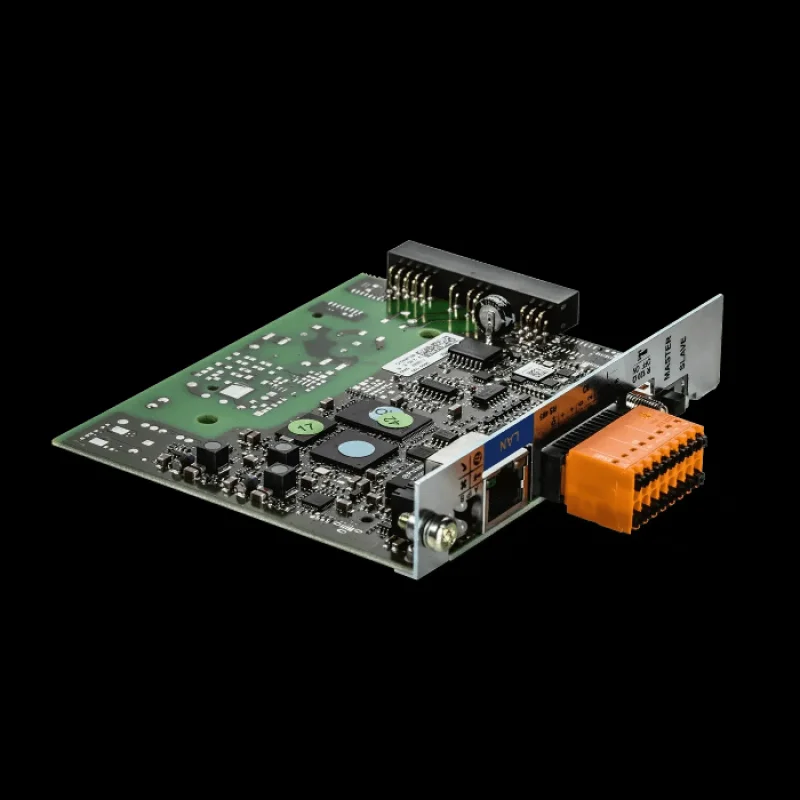

The Fronius Datamanager is the ultimate communications center for Fronius inverters, providing real-time system data and seamless integration with third-party systems. With its sleek design and user-friendly interface, this device makes it easy to monitor and manage your PV system. Plus, it’s compatible with a range of Fronius inverters and can be retrofitted to existing systems. The Datamanager also features a range of interfaces, including Ethernet, RS422, and WLAN, making it easy to connect to your network. Whether you’re a homeowner or a commercial installer, the Fronius Datamanager is the perfect solution for your solar monitoring needs.
| Dimension / length | 0.87 in |
| Weight incl. packaging | 1.21 lb |
| Storage capacity | max. 4096 days |
| Supply voltage | 12 V DC power supplied by inverter |
| Energy consumption | <2.0 W |
| Operating temperature range | -20C – +65C |
| Ethernet (RJ45 socket) | LAN, 10/100 MBit / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| RS422 (RJ45 socket) | Fronius Solar.Net IN |
| WLAN | Wireless standard 802.11 b/g/n / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
| 6 digital inputs | Interface to ripple control receiver |
| 4 digital inputs/outputs | Interface to ripple control receiver, load management |
| RS485 | Modbus RTU SunSpec or meter connection |
