Description

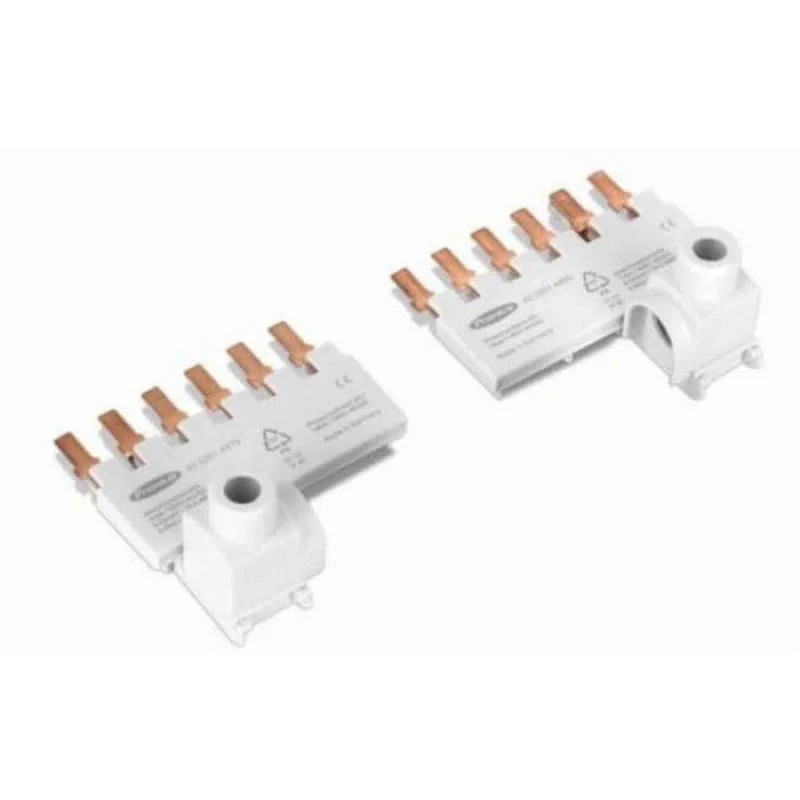

The Fronius DC connector kit is perfect for connecting both inputs with MPP currents above 35 A and cable cross sections over 16 mm. It’s safe to touch, doesn’t require ferrules, and is ideal for Fronius Symo and Eco inverters. This kit is suitable for copper and aluminum cables, and it meets IEC 60999:2000, UL508, UL486A, and CSA C22.2 standards. With a max current of 100 A and connection cross section of 6 mm – 25 mm, this kit is a reliable choice for your solar needs.
| Max. current | 100 A |
| Connection cross section | 6 mm – 25 mm |
| Cable type | Copper and aluminum cables |
| Torque | 5.5 Nm / 50 lb-in |
| Clamping area of the screw joint | 8 mm – 13 mm |
| Standards | IEC 60999:2000, UL508, UL486A, CSA C22.2 |
