Description
Double-sided column clamp makes the router extremely torsionally rigid and the parallel edge guide can be precisely adjusted without any tools. The easily accessible working area with shadow-free LED light ring provides an optimal view of the workpiece. Extensive range of accessories for a variety of applications.
- Lightweight with compact design for ergonomic use.
- Quick and easy bit changes.
- Simple routing depth adjustment, accurate to 1/256″ (1/10 mm).
- Designed with restart protection.
- MMC electronics for optimal work and temperature monitoring.
- Chip extraction system directly integrated into the router base for D 27 and D 36 hose diameters.
Power consumption: 1,010W
Idle engine speed: 9,500 – 23,000 RPM
Drive type: 120 VAC
Routing depth fine adjustment range: 5/16″
Collet dia.: 1/4″-5/16″
Dust extraction connection dia.: 1-1/16″, 1-13/32″
Routing stroke: 2-1/8″
Cable length: 13′
Bench opening: 2″
Weight: 7.06 lbs.

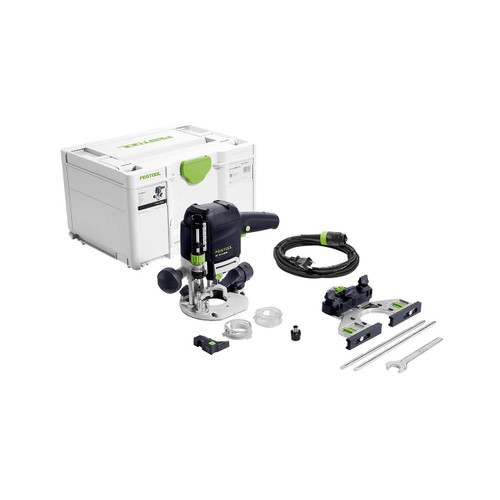

Includes
32″ guide rail
accessories set
chip catcher
collet wrench
dia. 1/4″ clamping collet
dia. 5/16″ clamping collet
guide rail adapter
guide rods
light module
parallel edge guide with fine adjuster
plug it-power cable
Systainer SYS3 M 237
