Description
Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

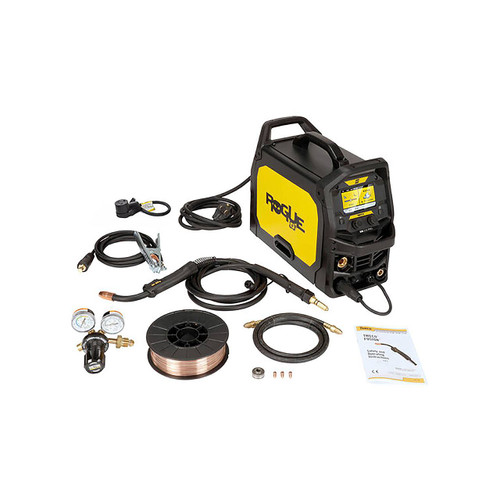

An inverter-based MIG welding system designed for everything from light fabrication to repair and maintenance. Features industrial-grade arc performance and full featured controls to fine tune arc characteristics based on material.
- Intuitive 5″ TFT screen offers clear views with direct interaction
- Full range of welding parameters, 0.5 – 8.0 mm (0.020 – 0.30″) with single knob control
- Power Factor Correction (PFC) ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328′)
- Unique rugged industrial design supports multiple lift points and cable management
- Fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
- 10 memory save/recall function
- Rogue automatically configures set up when spool gun is connected (Spool gun sold separately)
- Configure the display to 1 of 29 languages
- After 2 minutes of inactivity the unit will enter energy saver mode to reduce power consumption
- IP23S rated for indoor/outdoor use
Input Voltage: 230 VAC ±10%, 50/60 Hz 120 V ±10%, 50/60 Hz
GMAW Welding Output:
100 A19.0 V (120 V) @ 25% Duty Cycle
82 A18.1 V (120 V) @ 60% Duty Cycle
63 A17.2 V (120 V) @ 100% Duty Cycle
210 A24.5 V (230 V) @ 25% Duty Cycle
136 A20.8 V (230 V) @ 60% Duty Cycle
105 A19.2 V (230 V) @ 100% Duty Cycle
Current Range: 10-210 A
Voltage Range: 10.4-27.2 V
Wire Feeder Specifications: 2.0-16.5 m/min (75-650 in./min)
Open Circuit Voltage: 78 VDC
Wire Diameter
Aluminum: 0.8-1.2 mm (0.030-0.045″)
Mild Steel: 0.6-1.0 mm (0.023-0.035″)
Flux Cored: 0.8-1.2 mm (0.030-0.045″)
Stainless Steel: 0.8-1.0 mm (0.030-0.035″)
Max Spool Diameter: 100 and 200 mm (4″ and 8″)
Power Factor at Maximum Current: 0.99
Efficiency at Maximum Current: 80%
Energy Save Mode: <50 W
Supply Plug: NEMA 6-50P
Operating Temp: -10 – +40 °C
MCableX: 14/2, 3 m (10′)
Rated kVA: 6.2 kVA (230 V), 2.4 kVA (120V)
Recommended Generator: 6.0 kW (120V), 10 kW (230V)
Enclosure Class: IP23S
Certification Mark: cETLus
Dimensions: 548 x 229 x 406 mm (23.2″L x 8.7″W x 15.2″H)
Weight: 16.9 kg (37.3 lbs.)
Setting Range: 10.4-27.2V (10-210A)
