Description

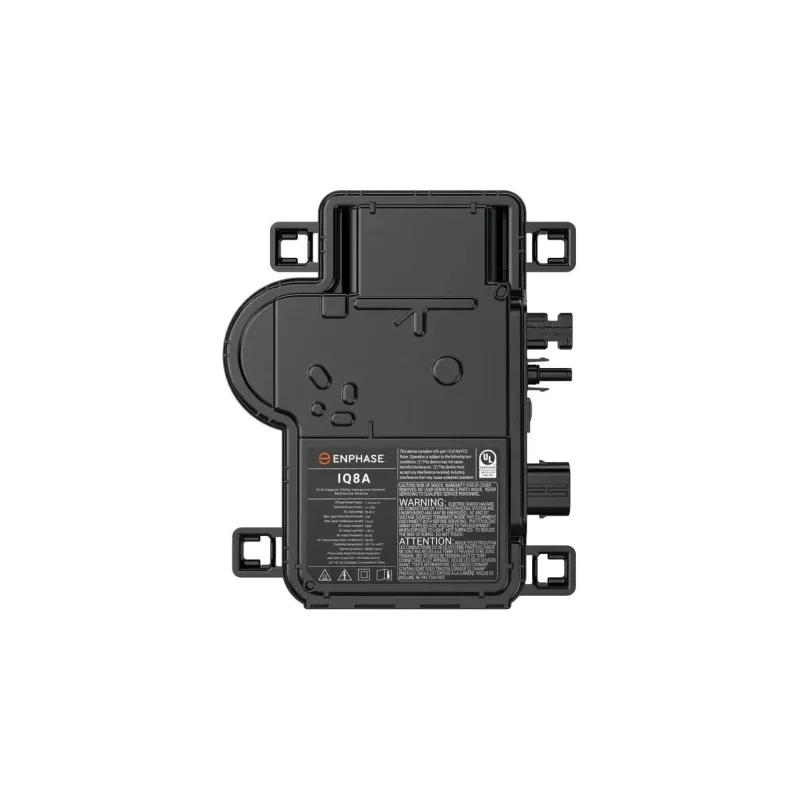

Our newest IQ8A Microinverters are the industrys first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.
The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high-speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
Part of the Enphase Energy System, IQ8A Microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.
IQ8A Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
Connect PV modules quickly and easilyto the IQ8 Series Microinverters that hasintegrated MC4 connectors.
IQ8A Microinverters are UL Listed as PV Rapid Shutdown equipment and conform with various regulations, when installed according to manufacturers instructions.
- Lightweight and compact with plug-n-play connectors
- Power Line Communication (PLC) between components
- Faster installation with simple two-wire cabling
- Produce power even when the grid is down
- More than one million cumulative hours of testing
- Class II double-insulated enclosure
- Optimized for the latest high-powered PV modules
- Complies with the latest advanced grid support
- Remote automatic updates for the latest grid requirements
- Configurable to support a wide range of grid profiles
- Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)
Whats in the box:
- IQ8A Microinverter
- Mounting bracket
- Peak output power: 366 VA
- Input power: 295 – 500 W
- Maximum continuous output power: 349 VA
- Operating range: 16 58 V
- Length 212.00 mm
- Width 175.00 mm
- Height 30.20 mm
- Weight 1.1 kg
IQ8M, IQ8A Microinverter data sheetIQ8M, IQ8A Microinverter with integrated MC4 connectors data sheetDesign and installation parameters for IQ8 backup configurations tech briefDesign and installation parameters for IQ8 Series Microinverter tech briefIQ8 Series Microinverter installation and operation manualIQ8 Series Microinverter IEEE 1547:2018 Certificate of Compliance
MANUFACTURER’S WARRANTY
IQ8 Series Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
