Description

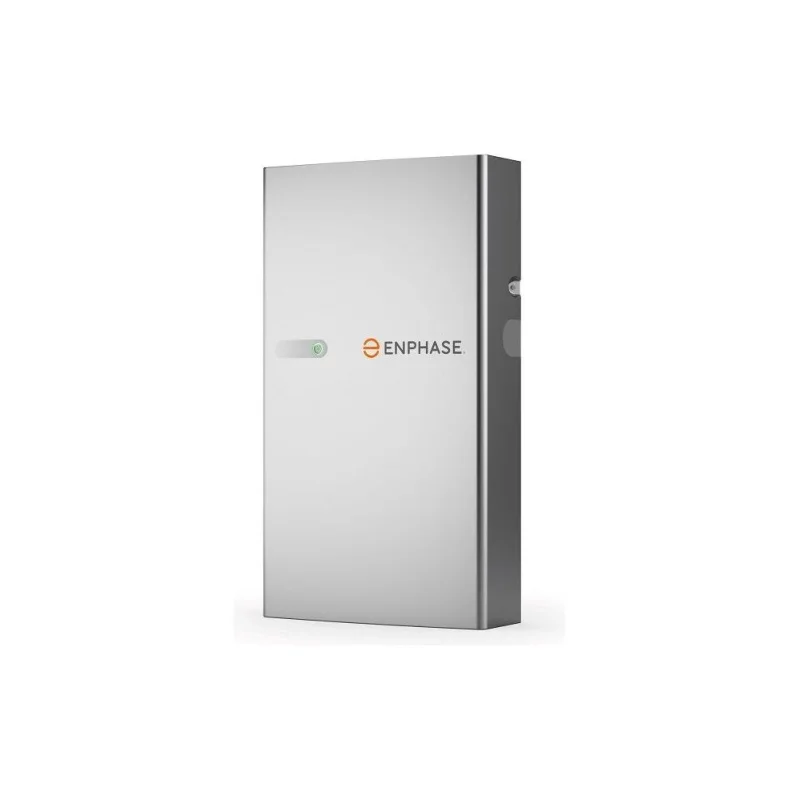

The IQ Battery 5P all-in-one AC-coupled system is powerful, reliable, simple, and safe. It has a total usable energy capacity of 5.0 kWh and includes six embedded grid-forming microinverters with a 3.84 kVA continuous power rating. It provides backup capability, and installers can quickly design the right system size to meet the customer needs.
Features
Powerful
Provides 3.84 kVA continuous and 7.68 kVA peak power
Doubles the available power per kWh of prior generations of IQ Battery 5P
Includes six embedded IQ8D-BAT Microinverters
Reliable
15-year limited warranty
Cools passively with no moving parts or fans
Uses wired communication for fast and consistent connection
Updates software and firmware remotely
Simple
Fully integrated AC battery system
Installs and commissions easily
Supports Backup, Self-Consumption, and time-of-use (TOU) modes
Offers homeowners remote monitoring and control from the Enphase App
Field replaceable components
Safe
Tested to meet UL 9540A, the highest industry standard for battery safety
Uses lithium iron phosphate (LFP) chemistry for maximum safety and longevity
EN-IQBATTERY-5P-1P-NA DatasheetEN-IQBATTERY-5P-1P-NA ManualEnphase Energy Warranty
MANUFACTURER’S WARRANTY
The product comes with a 15-year warranty.
