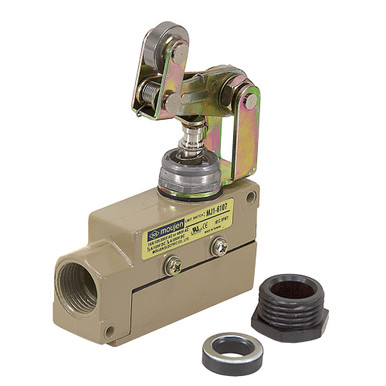

TOP ROLLER LEVER ENCLOSED LIMIT SWITCH
Brand new, RELAY & CONTROLS CORP limit switch. Gasket on metal housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 20 operations per minute. 1/2″ conduit entry.
SPECIFICATIONS
- Brand Relay & Controls Corp
- Model MJ1-6107
- Contact Type Single Pole Double Throw
- Contact Ratings 15 Amps @ 250 Volt AC
- Actuator Details Roller Lever (aligned with body)
- Operating Force Max. 600g max.
- Releasing Force 170g
- Pre-Travel Max. 5mm
- Over-Travel Min. 5.5mm
- Differential Travel Max. 0.72mm
- Terminals Screw
- Side Mount 2 M4 screws, 1″ c/c
- Size 3.375″ x 1″ x 1.75″ (housing only)
- Shpg. 1 lbs.
