Description

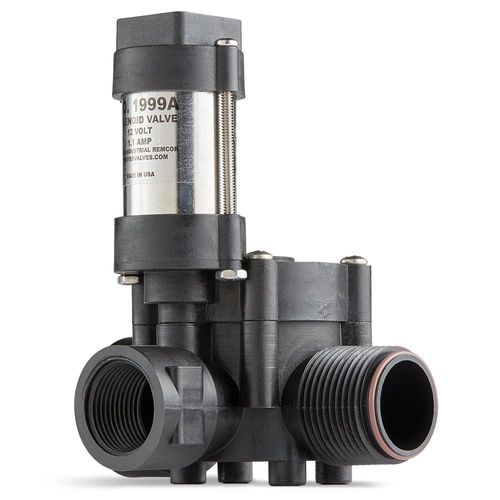

This 12 Volt electric boom shut-off solenoid valve is used for larger flows and is designed to be used with all types of agricultural crop sprayers, where control of boom sections, pressure and on/off are required. It is designed to spray a variety of fluids.
This 12-Volt DC electric boom shutoff valve has a 1 inch NPT female inlet, 1 inch male bypass outlet and 3/4 inch NPT female boom line outlet for high volume applications at minimum pressure loss (pressure drop is only 5 PSI at 18 GPM).
It has current draw of only 1.1 amps per valve. The chemical resistant glass filled nylon body has Viton™ diaphragm and seals standard. The maximum operating pressure is 175 PSI and 18 GPM. For multiple valve units, simply screw one valve to another.
Specifications
- Texas Industrial Remcor, Inc.
- Model 1999A-1
- Solenoid valve, electric boom shutoff valve
- Inlet: 1 in. NPT female
- Bypass outlet: 1 in. male
- Boom line Outlet: 3/4 in. NPT female
- 12 Volt DC : 1.1 Amp
- Spade type
- Maximum operating pressure: 175 PSI at 18 GPM
- Repair kit use ASC 36895
